Product Details:
|
| Feature: | Enclosed | Application: | Solar Energy |
|---|---|---|---|
| Motor: | Electric Motor | Effciency: | 40% |
| Size: | 9 Inches | Gear Ratio: | 61:1 |
| Material: | 42CrMo 50Mn | Waterproof: | IP66 |
| Highlight: | 50Mn Solar Tracker Slew Drive Gearbox,Electric Motors,Enclosed Housing Solar Tracker Slew Drive |
||

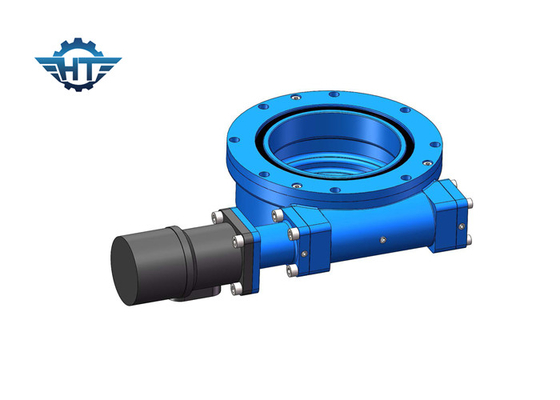

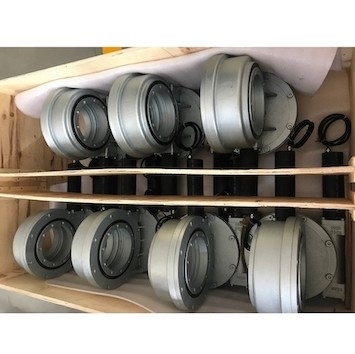

42CrMo 50Mn SE9 Enclosed Housing Slew Drive Gearbox With Electric Motors 9 inches
Slew Drive Gearbox Service
-- Customer can choose the motor according to our already designed slewing drive connect dimension.
-- We can customized the connection dimension according to customer's motor connect dimension.
-- We can help to provide the whole parts with Hydraulic motor, DC motor, AC motor, Stepper or Servo motor.
Slew Drive Gearbox Description
The enclosed housing worm gear slewing drive device is mainly used in the large torque output but the installation space is limited, and in the case of relatively high working conditions, such as dustproof, rainproof, anti-corrosion and other high requirements for the rotary structure part , the IP level reaches IP66. SE Slewing drives are assured for a 30-year field life and create an efficient and reliable solution in a single driving solar tracking system. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to ensure field life.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Applications
Products are widely used in solar tracking systems, aerial work vehicles, construction machinery vehicles, garden machinery, cranes and shipbuilding, construction machinery, playgrounds, automatic parking lots, mining and tunnel drilling machines, transportation and conveying devices, communication radar vehicles and Satellite ground receivers, etc. It is worth mentioning that our products are also used in concentrating solar power generation systems as key components in focused photovoltaics, solar thermal power or solar tracking guidance or heliostat tracking in concentrated photovoltaic and thermal systems.
