Product Details:
|
| Type: | Single Enveloping Worm Gear | Material: | QT |
|---|---|---|---|
| Field Life: | 30 Years | Application: | Horizontal Single Tracking System |
| Color: | As Requested | Size: | 3 Inch To 25 Inch |
| Motor: | 24V/12V/48V | Feature: | Long Life And Self Locking |
| Highlight: | Double Enveloping Worm Gear Slew Drive,Horizontal Worm Gear Slew Drive,Single Tracking System Slew Drive |
||

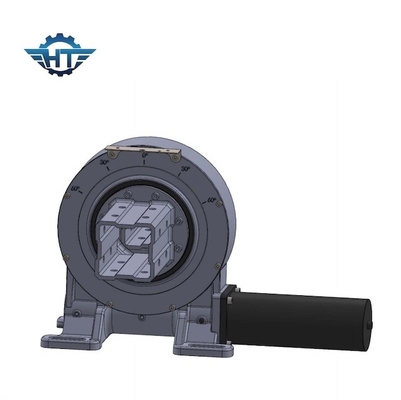

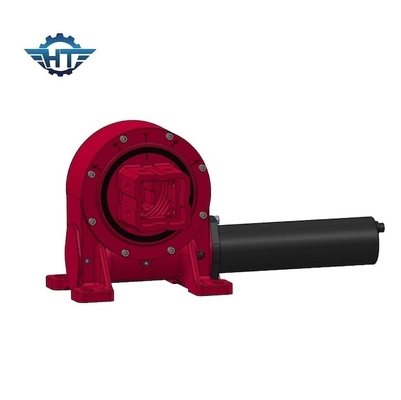

Double Enveloping Worm Gear Design Slew Drive For Horizontal Single Tracking System
Double Enveloping Worm Slewing Drive
A Slew Drive, commonly referred as a worm drive, is a complete, ready to install system that consists of gear, worm, base, top plate and completely enclosed housing. It can be customized with hydraulic or 12V/24V/48V electric motors, planetary gearboxes.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Features
Rotation 360 degrees
Connection of a driving motor from the left or right side
During installation, it is not necessary to adjust the gearing clearance
Grease had been filled before factory
Simple installation and low maintenance
Rational space utilization
The gear is self-locking; therefore a brake is not necessary
Easy and fluent method of starting and stopping
High tilting torque, suitable for horizontal installation
