Product Details:
|
| Gear Ratio: | 37:1 | Type: | Enclosed Housing |
|---|---|---|---|
| Application: | Solar Energy | Driver: | Electric Motor |
| IP Grade: | IP66, IP65 | Color: | As Buyers's Needs |
| Effciency: | 40% | Backlash: | 0.1 Degree |
| Highlight: | SE5 Single Axis Small Slewing Drive,Horizontally Installed Slewing Drive,IP65 Electric motor Slewing Drive |
||

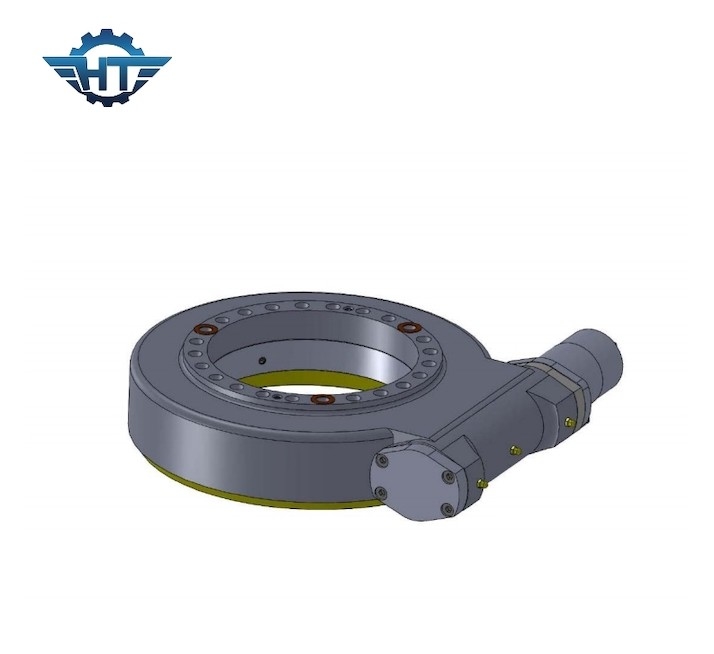

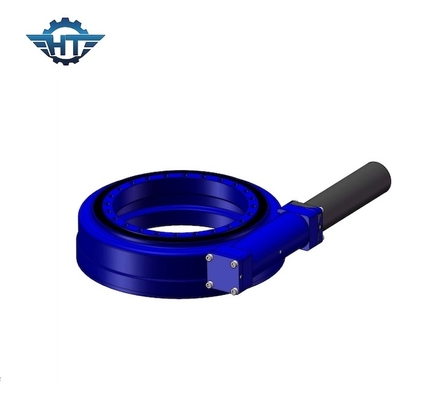

SE5 Single Axis Small Slewing Drive Horizontally Installed For Solar Energy
Single Axis Small Slewing Drive Description
Hangtuo Mechanical a professional manufacturer and exporter of slew ring drives which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single and dual axis solar tracking systems, and small wind power systems etc. There are produced in series to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.
Slew ring and slewing drives can bear axial load, radial load and tilting moment. The diameter range of slew ring can be from 200 mm to 4000 mm. For slewing drive, there are nine (10) different sizes available from 1” to 25” with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
What We Do?
1. Deliver custom-engineered solutions to various customers, according to requirement.
2. Manufacture and supply slewing ring with high precision for special purpose requirements.
3. Committed to keeping the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.
