Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SDE7" |
|---|---|---|---|
| Gear Ratio: | 57:1 | Rated Output Torque: | 2000 Nm |
| Holding Torque: | 13500 Nm | Tilting Torque: | 13200 Nm |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| Highlight: | SDE Dual Axis Small Slew Drive,PV Tracking Dual Axis Slew Drive,Dual Axis Slew Drive 2000 Nm |
||

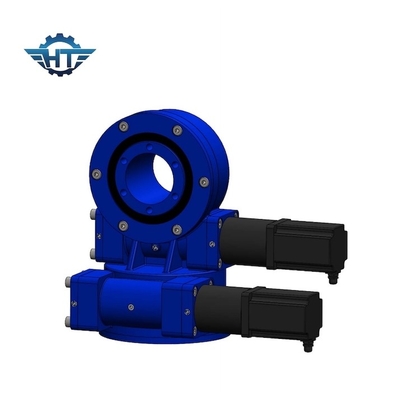

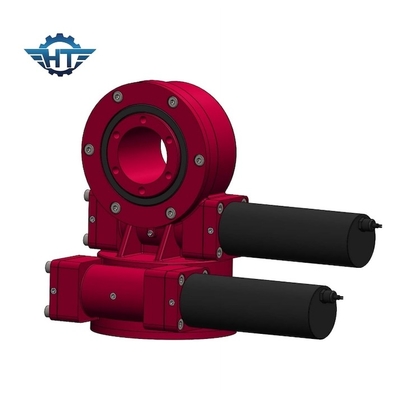

SDE Series Dual Axis Small Slew Drive With Brushed Motor For PV Tracking System
Dual Axis Small Slew Drive Description
History of Tower Photothermal
The design concept of the tower solar thermal power generation system was proposed by the former Soviet Union in the 1950s. In 1950, the former Soviet Union designed the world's first small tower-type solar thermal power station, and carried out extensive and fundamental exploration and research on solar thermal power generation technology. According to incomplete statistics, there were more than 20 megawatt-scale solar thermal power experimental power stations built in the world from 1981 to 1991, the main form of which is the tower power station, with a maximum power generation of 80 MW. In July 2013, China's Qinghai Zhongkong Delingha 50MW tower solar thermal power station-Phase I-10MW project was successfully integrated into Qinghai Power Grid, indicating that China's self-developed solar thermal power generation technology has taken solid steps toward commercial operation.
SDE Model Slew Drives Applied In Tower CSP
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Applicatons
CSP-tower/heliostat power station
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
