| Brand Name: | HangTuo |
| Model Number: | SDE5” |
| MOQ: | 1 piece |
| Price: | USD 280~504 / pc |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |

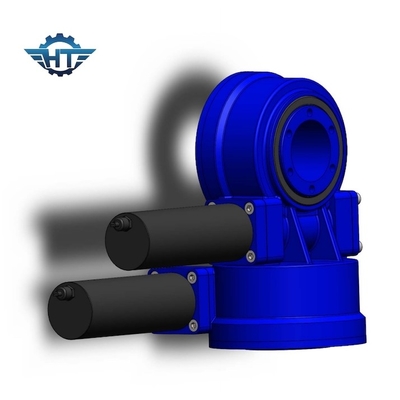

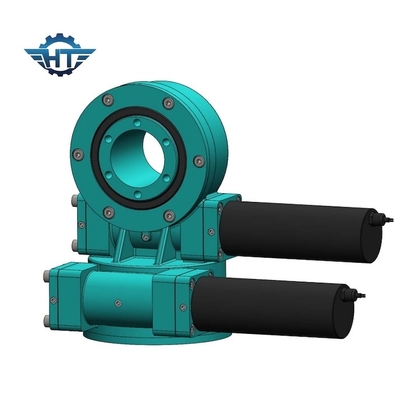

Dual Axis Slew Drive with Worm And Gear Structure For Solar Tracking System
Worm And Gear Slew Drive Description
Slewing drives consist of slewing bearing, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.
SDE Model Slew Drives Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Function
Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotates at azimuth and elevation driven by slewing drive.
Application
For Solar: It is designed in solar tracking system and improves power generation efficiency.
For industrial usage: Mainly used to drive two relative rotating objects in 360°.
Advantages
1. Designed with hourglass worm shaft which provides more tooth contact and higher torque
2. Service life is increased by gear and raceway harden
3. Product performance is tested and ensured product quality.
There are many applications in which the slewing drive can be utilized, primarily because it is perfect for applications that require both load-holding power and rotational torque strength.
