Product Details:
|
| Application: | Solar Trackers | Place Of Origin: | Changzhou |
|---|---|---|---|
| Driver: | Planetary Gear Motor | Certificate: | ISO9001, CE |
| Installation: | Horizontal | Maintenance: | Free |
| Color: | As Requested | Backlash: | 0.1 Degree |
| Highlight: | Horizontal Mounted Solar Trackers Slew Drive,24V DC Solar Trackers Slew Drive,Solar Trackers Slew Drive With Motor |
||

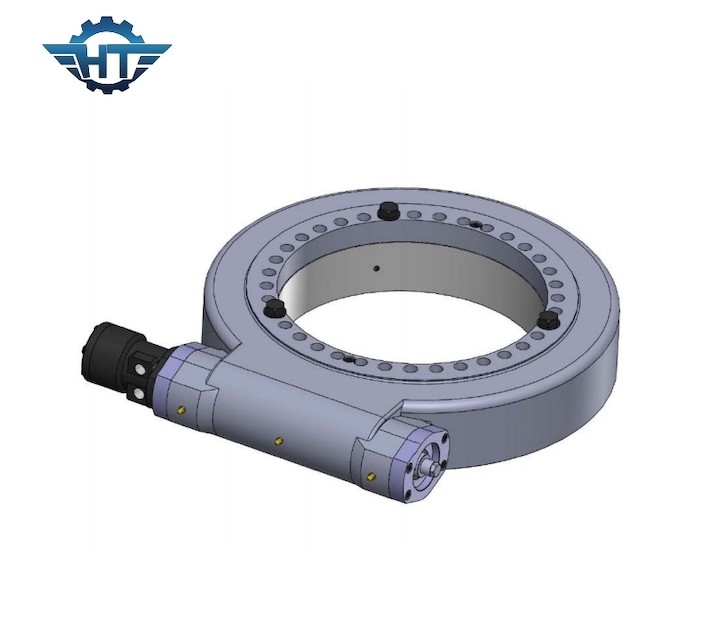

Horizontal Mounted Slew Drive Gearbox With 24V DC Motor For Solar Trackers
Slew Drive Gearbox Description
Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.
| Model: | SE5 | Place of Origin | Changzhou,China |
| Brand | HANGTUO | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 600 N.m |
| Tilting Moment Torque | 6 K N.m | Holding Torque | 9.2 K N.m |
| Static Axial Rating | 68 KN | Static Radial Rating | 27 KN |
| Dynamic Axial Rating | 34 KN | Dynamic Radial Rating | 14 KN |
| Gear Ratio | 37:1 | Efficiency | 40% |

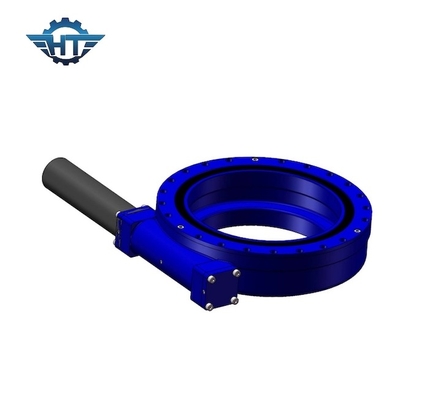

Recommended slewing drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
The main advantages of SE slewing drives
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Grease had been filled before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
8. High tilting torque, suitable for horizontal installation
