Product Details:
|
| Material: | 50Mn, 42CrMo, QT | Gear Ratio: | 51:1 |
|---|---|---|---|
| Rated Output Torque: | 7320 Nm | Holding Torque: | 40 KNm |
| Tilting Torque: | 8 KNm | Standard Color: | RAL 9006 |
| Backlash: | 0.1 Degree | Rotating Type: | Single Axis |
| Highlight: | Worm Gear Slew Drive Gearbox,24V Photovoltaic Worm Gear Slew Drive,IP 66 Worm Gear Solar Slew Drive |
||

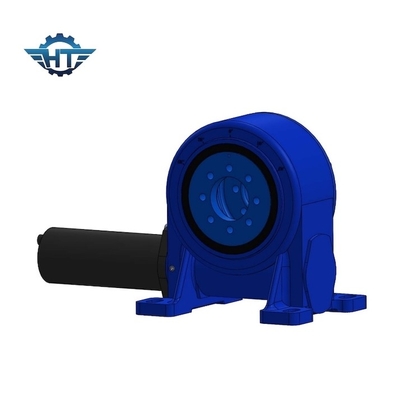

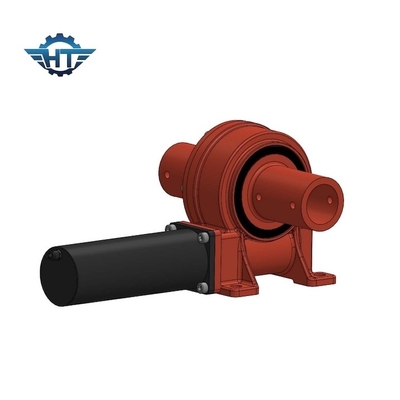

IP66 Worm Gear Slew Drive Gearbox For 24V Photovoltaic Solar Tracking System
Worm Gear Slewing Drive Description
A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.
Parameters of VE Model Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
A slewing drive is also called slewing gear drive or slewing reducer, etc. It is typically used in solar power systems, wind turbines, satellite system, and engineering machinery like truck cranes, man lifts, etc. Now it has been prosperously used in photovoltaic tracking systems.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please feel free to contact our sales person at the contact page.
Product Advantages
1) Higher output torque and holding load
2) Top tracking precision
3) Strong corrosion resistance and sealing effective
4) Self-locking
Application Fields
| Wind Power Field | Metallurgical Machinery |
| Light Industry | Heavy Equipments |
| Port/Marine Machiner | Military Products. |
| Construction Machinery Mining | Steel Works Equipment |
| Sewage Treatment Plant | Agricultural Machinery |
