| Material: | 50Mn, 42CrMo | Model: | SE17" |
|---|---|---|---|
| Gear Ratio: | 102:1 | Rated Output Torque: | 9450Nm |
| Tilting Torque: | 203kNm | Efficiency: | 40% |
| Color: | RAL 9006 Or As Requested | Load Capacity: | High |
| Highlight: | SE17 Slew Drive Gearbox,Solar Tracker Gearbox Slew Drive,203 kNm Solar Tracker Slew Drive |
||
SE17 Slew Drive Gearbox With 380 Servo Motor For Mist Cannon Truck

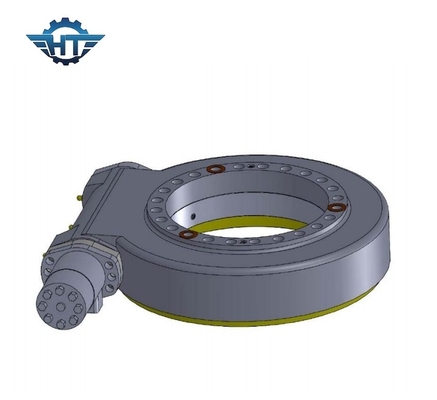

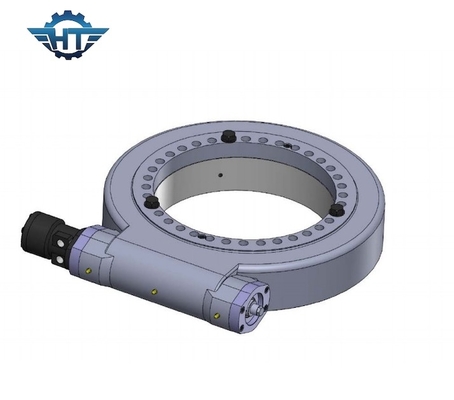

Azimuth Rotate Slewing Drive Description
Rated Output Torque: 9.45 kN.m
Tilting Moment Torque: 203 kN.m
Axial Load: 980kN
Radial Load: 390kN
Holding Torque: 53kN.m
Gear Ratio:102:1
Tracking Precision: ≤0.15
Self-locking gears: Yes
Weight: 85kg
Parameters of SE Slewing Drive
| Type | 3’’ | 5’’ | 7’’ | 9’’ | 12’’ | 14’’ | 17’’ | 21’’ | 25’’ |
| Rated output torque/kN.m | 0.3 | 0.6 | 1.75 | 4.3 | 5.6 | 6.75 | 9.46 | 16 | 21.45 |
| Tilting moment torque/kN.m | 1.5 | 6 | 10.5 | 49.9 | 54.4 | 135 | 203 | 271 | 346 |
| Axial load/kN | 30 | 68 | 132 | 340 | 480 | 680 | 980 | 1600 | 2400 |
| Radial load/kN | 15 | 27 | 58 | 130 | 190 | 230 | 390 | 640 | 950 |
| Gear ratio | 31:1 | 37:1 | 57:1 | 61:1 | 78:1 | 85:1 | 102:1 | 125:1 | 150:1 |
| Self-locking | yes | yes | yes | yes | yes | yes | yes | yes | yes |
| Weight/kg | 7 | 14 | 23 | 44 | 51 | 62 | 85 | 141 | 182 |
| Suitable Panel Area/m2 | 3-5 | 6-9 | 10-17 | 18-30 | 31-45 | 46-60 | 61-95 | 96-120 | 120-165 |
Changzhou Hangtuo Machinary Co.,ltd is a professional manufacturer and exporter of slewing bearing/slewing ring/slew circle, slewing drives/slew drive, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc.
Slewing Drive Advantages
1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
