Product Details:
|
| Model: | SE14 | Gear Ratio: | 85:1 |
|---|---|---|---|
| Efficiency: | 40% | Color: | RAL 9006 Or As Requested |
| Place Of Origin: | Changzhou, China | Driver: | 220VAC/380VAC/24VDC Motor |
| Application: | Truck Cranes | Maintenance: | Free |
| Highlight: | CE Worm Gear Slew Drive Gearbox,SE14 Solar Gear Slew Drive,24VDC Worm Solar Slew Drive |
||

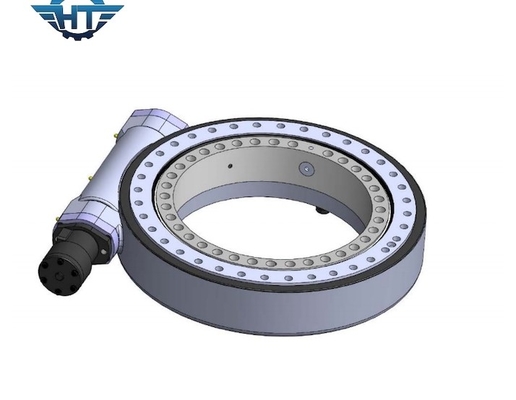

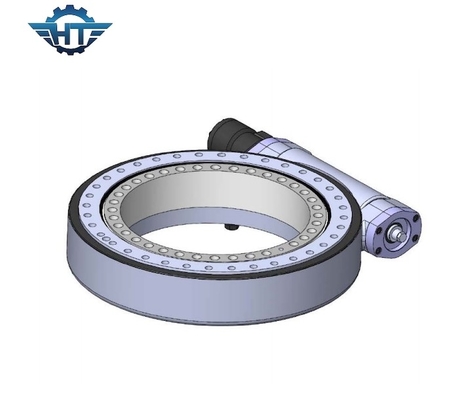

SE14 CE Certificate Worm Gear Slew Drive Gearbox With Hydraulic Motor For Truck Cranes
SE14 Slewing Drive Description
Slewing drive is able to sustain more axial load, radial load and tilting moment. Turntable or frame rotate at azimuth and elevation driven by slewing drive.
Performance Table of SE14
| Model | horizontal 14 inch worm drive |
| Ratio | 85:1 |
| IP Grade | IP66 |
| Rated Output Torque | 44 kNm |
| Tilting Torque | 135 kNm |
| Axial Load | 680 kN |
| Radial Load | 230 kN |
| Holding Torque | 68 kNm |
| Efficiency | 40% |
| Precision | ≤0.1 ° |
| Self-locking | Yes |
| Weight | 62 kg |
| Working Temperature | -30～+120 ℃ |
Structural Characteristics
Slewing worm drive is consisting of worm gear, worm shaft, housing, bearing, motor and so on. Motor drive the worm shaft, the worm and envelop worm and gear are engaged to increase the torque, stable and reliable.
Performance Chart for SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes |
204
|
Advantages
fast delivery: we are a big professional manufacturer withadvanced facilities and more than 10 yearsexperience
best after-sale service: we have protessional team to provide comprehensive one-stop service for you
competitive price: we can give customers the most competitive price to meet your budget
strict QC system: We have first-class production line andstrict quality management system
Application Scopes
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, diggers, and automotive lifts.
Our Services
There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17", 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
