Product Details:
|
| Model: | SE3" | Gear Ratio: | 31:1 |
|---|---|---|---|
| Application: | Satellite Antenna | Place Of Origin: | Changzhou, China |
| Driver: | 12/24 VDC Motors | Certificate: | ISO9001, CE |
| Installation: | Horizontal Or Vertical | Maintenance: | Free |
| Color: | As Requested | Backlash: | Less Than 0.1 Degree |
| Highlight: | Solar Tracker Single Axis Slew Drive,Solar Slew Drive For Satellite Antenna,0.1 Backlash Solar Tracker Slew Drive |
||

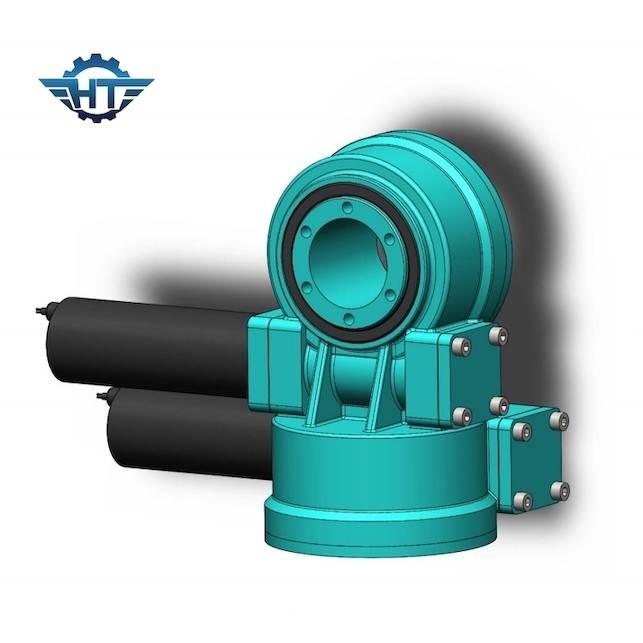

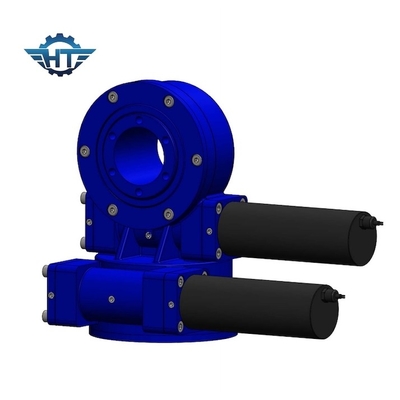

0.1 Backlash Single Axis Slew Drive For Solar Tracking System Or Satellite Antenna
Satellite Antenna Slewing Drive Description
The worm drive gearbox is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.
Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
A slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.
Parameters of slewing drive
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg | |||
| 1" | 31:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9 |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14 |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23 |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62 |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85 |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141 |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182 |
Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
