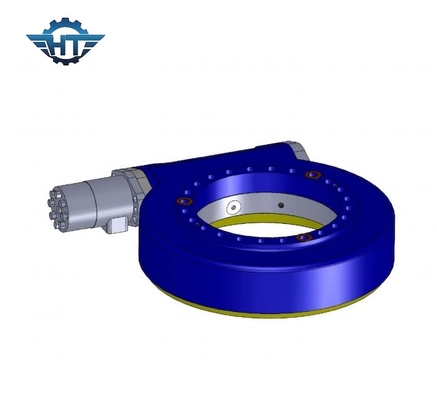

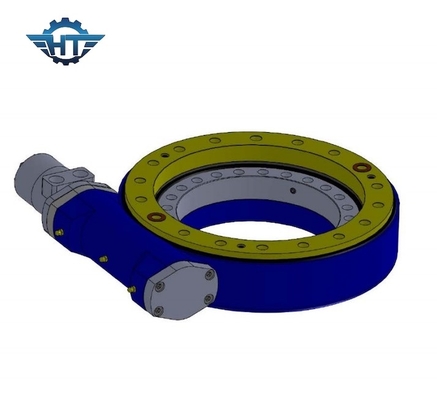

IP66 Rated SE21 Slew Drive Gearbox 220VAC For CSP And Solar Tracker System

IP66 Rated SE21 Slew Drive Gearbox For CSP And Solar Tracker System

SE21 SLewing Drive Description

SDE dual-axis slewing drives are assured for a 30-year field life of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.

Performance Table of SE21

Advantages

The azimuth & Elevation combined and enclosed designing can improve the tracking precision and power generation efficiency.
FRB using combined designing achieved better rigidity, impact resistance stronger, able to withstand the harsh environment of the desert and others.


High precision worm gear slew drive for solar tracking system

• Surface color: as your requirement
• Material: 50Mn, 42CrMo, any other material and dimension depends on customers' demand. Usage: machinery/solar energy
• Manufacturing process: casting parts, machining parts, coating parts, assembly, full inspection.
• Performance testing: salt spray, UV testing, high low temperature testing, life time testing, broken testing, torque testing
• Tolerance: according to the engineering standard
• We are ISO 9001: 2008 certified firm.

Our Services

1. We are willing to provide a sample for quality and function testing.
2. 3D design drawings are available
3. Lead Time: 7~15 days for samples
4. Equipment List: from simple 2-axis turning to 7-axis, turn-mill-drill CNC imported machines; we are equipped with a full line of CNC equipment.

​Packaging and Shipping

Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

Outer Packaging: hard carton; wooden case ; wood pallet.

Shipping Term: by express; by air; by land; by sea.

For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.

If in bulk order in the future, we recommend ship by sea.
