Product Details:
|
| Encoder Type: | Incremental Encoder | Operating Temperature: | -40℃ To＋120℃ |
|---|---|---|---|
| Protection Level: | IP66 | Resolution: | 3600 Ppr |
| Noise Level: | ≤50dB | Input Voltage: | 24V |
| Communication Interface: | RS485 | Package Weight: | 55Kg |
| Highlight: | RS485 Slewing Drive,Incremental Encoder Slewing Drive,Solar Tracker Drive 24V |
||

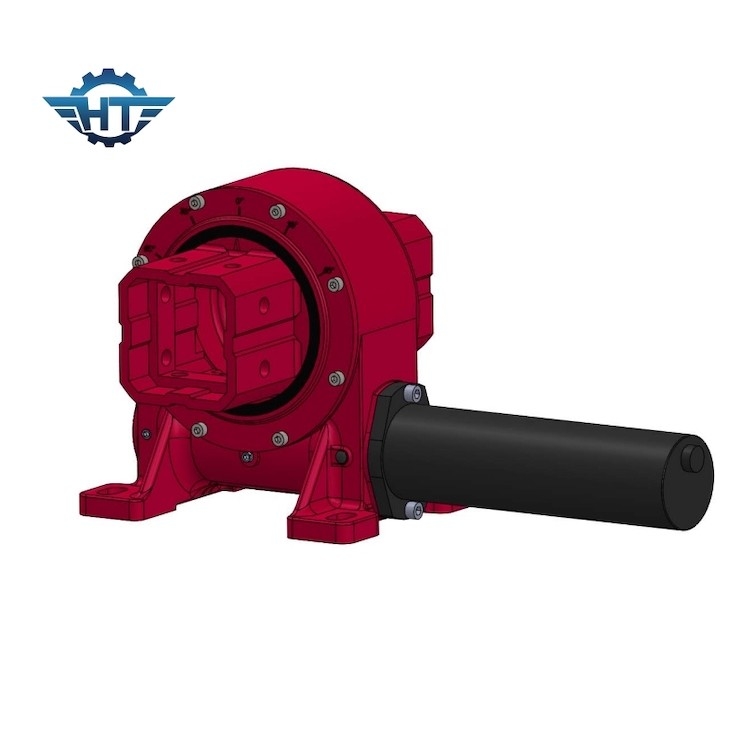

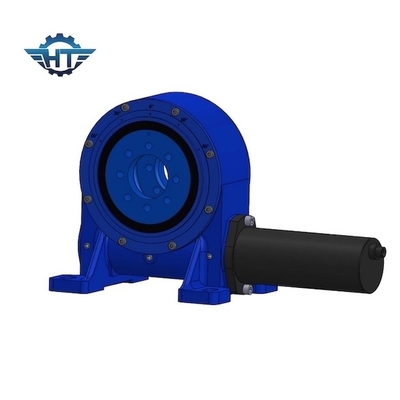

Slewing Drive Featuring RS485 Communication Interface - Solar Tracker
Product Description
Slewing Drive: Key Features and Components
A slewing drive, also known as a slew drive or slew bearing drive, is a mechanical component used in various applications to enable the controlled rotation of a load around a central axis. They are commonly found in industrial machinery and renewable energy, construction equipment, solar tracking systems, and wind turbines, where controlled and precise rotation is required.
Let's go through the key features and components of a slewing drive:
Main Housing: To withstand heavy loads and environmental conditions, the slewing drive typically consists of a compact and sturdy housing, within which all the internal components are held.
Central Axis: At the heart of the slewing drive is a central axis, usually referred to as the worm gear, which serves as the pivot point for the rotational movement.
Gear Mechanism: The gear mechanism, often consisting of a worm screw and a ring gear, converts rotary motion into angular motion.
Drive Motor: The drive motor is external to the slewing drive, and provides the necessary torque for rotation of the load.
Bearings: High-quality bearings are necessary for reduced friction and smooth and efficient rotation.
Seals and Lubrication: Seals and gaskets protect the internal components from external contaminants, and proper lubrication reduces wear.
Mounting Flange: A mounting flange may be needed to attach the slewing drive securely to the surrounding structure.
Slewing drives offer excellent versatility, durability, and loading capacity, making them essential components of various industrial applications.
Slewing drives are designed to handle heavy loads and offer precise control over rotation, making them ideal for various applications that require controlled motion. Their versatility, durability, and ability to support both axial and radial loads make them valuable components in industries such as construction, renewable energy, and manufacturing.
Technical Parameters
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight (kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Slewing Drives in Various Industries and Applications
Slewing drives are important components in a wide range of industries and equipment. They are designed to provide precise control of rotational movement and positioning, as well as bearing load capacity. Here are some of the common applications of slewing drives:
1. Solar Tracking Systems: Slewing drives are commonly used in solar tracking systems to orient solar panels and arrays toward the sun throughout the day, thereby improving the efficiency of solar power generation.
2. Wind Turbines: Similar to solar tracking systems, wind turbines use slewing drives to rotationally control the nacelle and blades of the turbine for it to efficiently capture wind energy.
3. Construction Equipment: Slewing drives are employed in construction machinery such as excavators, cranes, and concrete pumps, to enable the precise control of rotation of the boom, arm, or bucket.
4. Agricultural Machinery: They are also used in agricultural equipment, including combine harvesters and irrigation systems, to control the movement and positioning of various components.
5. Material Handling: Slewing drives are extensively used in material handling applications, such as conveyor systems, material loaders, and stackers, for precise control of conveyor belts and other equipment.
6. Rotary Tables: Dirving rotary tables is one of the most important industrial uses of slewing drives. They can be employed in manufacturing and machining processes to enable precise indexing and positioning of workpieces during machining.
7. Marine and Offshore Equipment: Slewing drives are used in ship cranes, offshore drilling rigs, and vessel positioning systems to allow control of rotating equipment and loads.
8. Aerial Work Platforms: Lift platforms and bucket trucks are some of the applications in which slewing drives can be found to control the movement and positioning of the work platform.
9. Renewable Energy: Besides wind and solar tracking, they are also utilized in tidal and wave energy systems for orientation of energy-capturing devices.
10. Satellite Dishes: Slewing drives, have applications such as satellite dishes, which require precise pointing and tracking in order to maintain communication with orbiting satellites.
11. Broadcasting and Surveillance: The use of slewing drives can be seen in broadcasting systems, radio and television antennas, and surveillance authorities for control of antenna or camera movement.
12. Automated Manufacturing: They are also used in automated manufacturing processes which require precise rotational movement and positioning.
13. Defense and Aerospace: Slewing drives are important components in radar systems, missile launchers, and telescopes used in this sector.
14. Entertainment Industry: Rotational control of amusement park rides is an area of application for slewing drives, including Ferris wheels and ride platforms.
15. Telescopes and Observatories: Astronomical observatories and telescopes also rely on slewing drives to precisely point and track celestial objects.
16. Mining and Quarrying Equipment: Lastly, slewing drives are used in various heavy machinery used in the mining sector, such as bucket-wheel excavators and stacker-reclaimers.
These examples demonstrate the infinite capabilities of slewing drives in many different industrial sectors. Their extreme accuracy of rotational movement, as well as bearing load capacity, makes them invaluable components for efficient and safe operations.
Support and Services
Solar Tracker Slew Drive Technical Support and Service
At Hangtuo, we provide technical support and service for our Solar Tracker Slew Drive. Our services are designed to meet the needs of our customers and maximize the performance of our Solar Tracker Slew Drive.
Technical Support and Troubleshooting
Our technical support team is available to provide support and troubleshooting services. We can help you with installation, setup, and configuration of your Solar Tracker Slew Drive. Our team is also available to help diagnose and resolve any technical issues you may have.
Maintenance and Upgrades
We provide maintenance and upgrade services to ensure that your Solar Tracker Slew Drive is always running optimally.
Warranty and Repair
We offer a comprehensive warranty and repair service for our Solar Tracker Slew Drive. If you experience any issues with your Solar Tracker Slew Drive, we will repair it as quickly as possible.
Packing and Shipping
Solar Tracker Slew Drive products are securely packaged with foam or bubble wrap and placed in either a cardboard box or a plastic container depending on the size and weight of the product. All products are shipped with a tracking number to ensure delivery.
The standard shipping time for Solar Tracker Slew Drive products is 3-5 business days. Express shipping is available upon request.
FAQ
Q1: What is the brand and model of the Solar Tracker Slew Drive?
A1: The Solar Tracker Slew Drive is a Hangtuo VE model.
Q2: Where is the Solar Tracker Slew Drive from?
A2: The Solar Tracker Slew Drive is from Changzhou, China.
Q3: What certification does the Solar Tracker Slew Drive have?
A3: The Solar Tracker Slew Drive has both CE and ISO9001 certifications.
Q4: What is the minimum order quantity of the Solar Tracker Slew Drive?
A4: The minimum order quantity of the Solar Tracker Slew Drive is 1.
Q5: What is the price range of the Solar Tracker Slew Drive?
A5: The price range of the Solar Tracker Slew Drive is USD200~350.
Q6: How long is the delivery time for the Solar Tracker Slew Drive?
A6: The delivery time for the Solar Tracker Slew Drive is 7~15 days.
