Product Details:
|
| Warranty: | 5 Years | Speed Range: | 0.1-100rpm |
|---|---|---|---|
| Resolution: | 0.01° | Output Torque: | 7320 N.m |
| Accuracy: | 0.15° | Protection Level: | IP66 |
| Input Voltage: | 24V | Motor: | Planetary Gearbox |
| Highlight: | Low-Noise Solar Tracker Slew Drive,High Efficiency Solar Tracker Slew Drive,Durable Operation Solar Slew Drive |
||

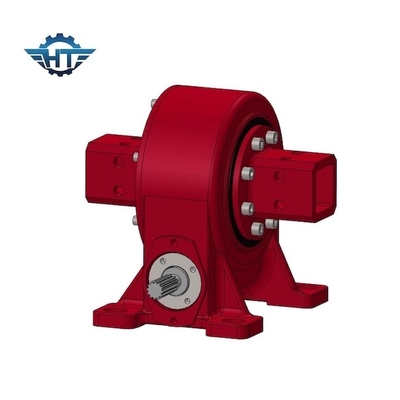

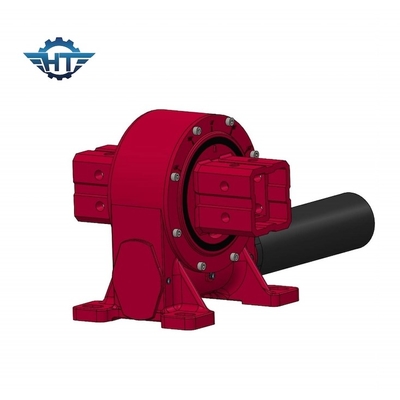

Precision-Engineered Solar Tracker Slew Drive with Wide Temperature Range
Product Description
A slewing drive, also known as a slew drive or slew bearing drive, is a mechanical component designed to facilitate controlled rotation around a central axis. It is employed in various applications where controlled and precise rotational movement is crucial. Here is a detailed description of slewing drives:
1. Main Components
Housing: Slewing drives consist of a robust housing that contains all the internal components. This housing is engineered to endure heavy loads and harsh environmental conditions.
Central Axis (Worm Gear): At the core of the slewing drive is a central axis, often referred to as the worm gear. It serves as the pivot point for the rotational movement.
Gear Mechanism: The primary function of the slewing drive is to convert rotary motion into angular motion. This is achieved through a gear mechanism, typically composed of a worm screw and a ring gear. The worm screw meshes with the teeth on the ring gear, enabling controlled rotation.
Drive Motor: An external drive motor is usually attached to control the rotation of the slewing drive. The motor provides the necessary torque and power to rotate the load.
2. Bearings:
Slewing drives incorporate high-quality bearings, which provide support and reduce friction. This allows for smooth and efficient rotation. Some slewing drives feature multiple rows of bearings for enhanced stability.
3. Seals and Lubrication:
To safeguard the internal components from dust, dirt, and moisture, slewing drives are equipped with seals and gaskets. Proper lubrication is essential to reduce wear and ensure long-term reliability.
4. Mounting Flange:
Depending on the application, a mounting flange may be included to attach the slewing drive securely to the surrounding structure.
5. Output Gear:
Some slewing drives have an output gear, which is connected to the load that needs to be rotated. This gear can be customized to suit the specific requirements of the application.
6. Features:
Slewing drives are known for their high load-bearing capacity, compact design, precise positioning, and continuous 360-degree rotation capability. They offer minimal backlash, high reliability, and are versatile enough to handle both axial and radial loads.
7. Applications:
Slewing drives are used in a wide range of industries, including solar tracking systems, wind turbines, construction equipment, agricultural machinery, marine applications, material handling, and many more.
8. Customization:
Slewing drives can be customized to meet specific application requirements, including gear ratios, output torque, and mounting configurations.
9. Environmental Resistance:
Many slewing drives are designed to withstand harsh environmental conditions, such as extreme temperatures, moisture, and corrosive environments.
Slewing drives are crucial components in industries where controlled rotation and precise positioning are required. Their versatility, durability, and ability to support heavy loads make them valuable in various applications, contributing to the efficiency and reliability of machinery and equipment.
Technical Parameters
Parametric Overview of Planetary Reducers
Planetary Reducer is a kind of gearbox that works by rotating multiple gear wheels to reduce the speed and increase the torque. This type of gearbox is widely virtually used in every walk of life. The table below show the details of each model of the planetary reducer, including rated output torque, holding torque, tilting torque, axial load, radial load, ratio, efficiency, precision, IP, working temperature, self-locking, and weight.
|
Model |
Rated Output Torque (N.m) |
Holding Torque (kN.m) |
Tilting Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio |
Efficiency |
Precision (Degree) |
IP |
Working Tep(℃) |
Self-locking |
Weight (kg) |
|
3" |
806 |
9 |
5 |
22 |
15 |
31:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
12kg |
|
5" |
962 |
30 |
6 |
16 |
27 |
37:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
18kg |
|
7" |
7344 |
60 |
10 |
34 |
58 |
51:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
32kg |
|
8" |
8000 |
70 |
14 |
50 |
80 |
50:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
28kg |
|
9" |
8784 |
80 |
16 |
60 |
130 |
61:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
52kg |
|
12" |
11232 |
100 |
25 |
77 |
190 |
78:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
65kg |
|
14" |
12240 |
120 |
48 |
110 |
230 |
85:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
88 kg |
|
17" |
14688 |
136 |
67 |
142 |
390 |
102:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
135 kg |
|
21" |
18000 |
140 |
89 |
337 |
640 |
125:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
192 kg |
|
25" |
21600 |
150 |
112 |
476 |
950 |
150:1 |
40% |
≤0.15 |
66 |
-40～+80 |
Yes |
251 kg |
The above data indicate that planetary reducers have quite a range of features and can be applied to various scenarios. Furthermore, this kind of gears provides high efficiency, good precision and reliable hardness, making it widely applicable.
Support and Services
Solar Tracker Slew Drive Technical Support & Services
At Solar Tracker, we understand that the key to a successful product is providing users with the best possible technical support and services. Our goal is to ensure that our customers receive the highest level of technical support and services available.
We offer a variety of technical support and services for our Solar Tracker Slew Drive product. These include:
Technical support over the phone or through email.
Online technical support and troubleshooting.
Maintenance and repair services.
Replacement parts.
If you have any questions or require any assistance with our Solar Tracker Slew Drive, please contact us and our team of experienced technicians will be happy to help.
Packing and Shipping
Solar Tracker Slew Drive Packaging and Shipping
The Solar Tracker Slew Drive is packaged in a strong plywoon box, with an internal foam or carboard to provide protection. It is then shipped by courier or air freight to the customer's designated delivery address.
