Product Details:
|
| Model: | VE5 Inches | Application: | Solar Tracking System |
|---|---|---|---|
| Certificate: | ISO9001, CE | Installation: | Horizontal Mounted |
| Maintenance: | Free | Color: | As Requested |
| Backlash: | Less Than 0.1 Degree | Input Voltage: | 24V DC |
| Highlight: | efficient worm gear slew drive,37/1 ratio worm gear slew drive,tracking system slew drive solar |
||

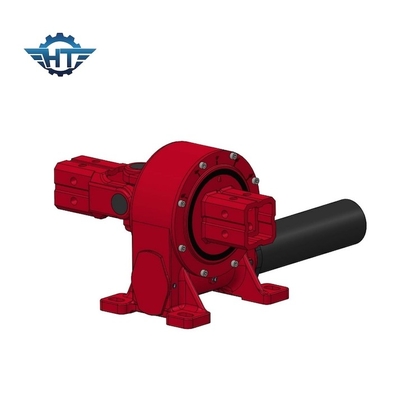

Efficient Worm Gear Slew Drive With 37:1 Ratio for Solar Tracking System
Worm Gear Slew Drive Description
slewing drives play a crucial role in enabling the rotational movement and load support in various industrial and mechanical systems, offering a reliable and efficient solution for applications that require continuous rotation and load-bearing capabilities.Slewing drives are commonly used in applications that require 360-degree continuous rotation, such as solar tracking systems, wind turbines, cranes, excavators, and industrial machinery. They provide a compact and efficient solution for transmitting torque and supporting heavy loads while allowing smooth and precise rotation.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Features
Maintenance and Lubrication: Depending on the specific design, slewing drives may require periodic maintenance, including lubrication of the gears and inspection of the housing for any signs of wear or damage. Proper maintenance helps to ensure optimal performance and longevity.
Precision and Control: Slewing drives can provide precise control over rotational movement, making them suitable for applications that require positioning accuracy and control, such as solar tracking systems or robotic arms.
Weather Resistance: Many slewing drives are designed to withstand harsh environmental conditions, including extreme temperatures, humidity, and exposure to corrosive substances. This makes them suitable for outdoor applications where durability is essential.
The specific features and capabilities of slewing drives can vary depending on the design, and intended application. Therefore, it's important to consult the product specifications and guidelines for detailed information.
