Product Details:
|
| Material: | 42CrMo Or 50Mn | Warranty: | 5~10 Years |
|---|---|---|---|
| Motor: | DC Motor | Application: | 2 Portrait PV Solar Tracking System |
| Noise: | ≤60dB | Operating Temperature: | -20℃~+80℃ |
| Product Name: | Solar Tracker Slew Drive | Protection Level: | IP66 |
| Highlight: | ve7 slew drive solar,24vdc gear motor slew drive solar,24v slewing drive for solar tracking system |
||

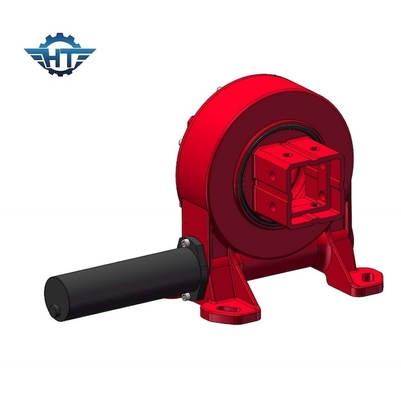

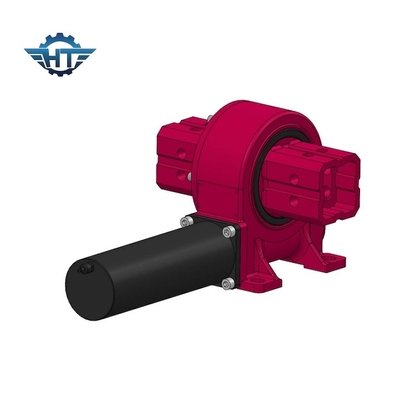

VE7 Solar Tracker Slew Drive with 24VDC Gear Motor For 2 Portrait PV Solar Tracking System
VE7 Solar Tracker Slew Drive Description
Hangtuo’s slewing drives employ precision technology that provides variable ratio in a multiple stages of gearing. The bearing and gears are assembled into a low profile, self-retaining, and ready-to-install housing. We have the capability to provide custom solutions for specific applications.
The design and specifications of slewing drives can vary depending on the specific application requirements, including load capacity, speed, accuracy, and environmental conditions. Different sizes and gear ratios are available to accommodate a wide range of applications and load capacities.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Features
Torque Transmission: Slewing drives efficiently transmit torque from the drive mechanism to the slewing ring, enabling smooth and controlled rotation. The worm gear or spur gear system ensures reliable power transmission with minimal backlash.
Slewing Ring Protection: Slewing drives provide an enclosed housing that protects the internal components, such as the slewing ring and gears, from contaminants, dust, moisture, and other environmental factors. This helps to extend the service life of the drive system.
Versatility: Slewing drives can be customized to meet specific application requirements. They are available in various sizes, load capacities, gear ratios, and mounting configurations. This versatility allows them to be used in a wide range of industries and applications.
Applications
Our products include slewing drives and related components, which are mainly applied in single or dual axis solar tracking systems, construction vehicles, port machinery, modular vehicles and small wind power systems.
