Product Details:
|
| Application: | Solar Tracking System | Motor: | 24V DC |
|---|---|---|---|
| Durability: | 30 Years' Life Cycle | Efficiency: | High |
| Name: | Electric Slew Drive | Noise: | Low |
| Protection: | IP66 | Weight: | Light |
| Highlight: | ve5 worm slew drive,solar tracking system worm slew drive,envelope worm gear slew drive |
||

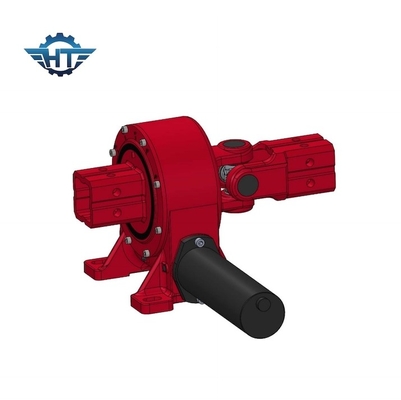

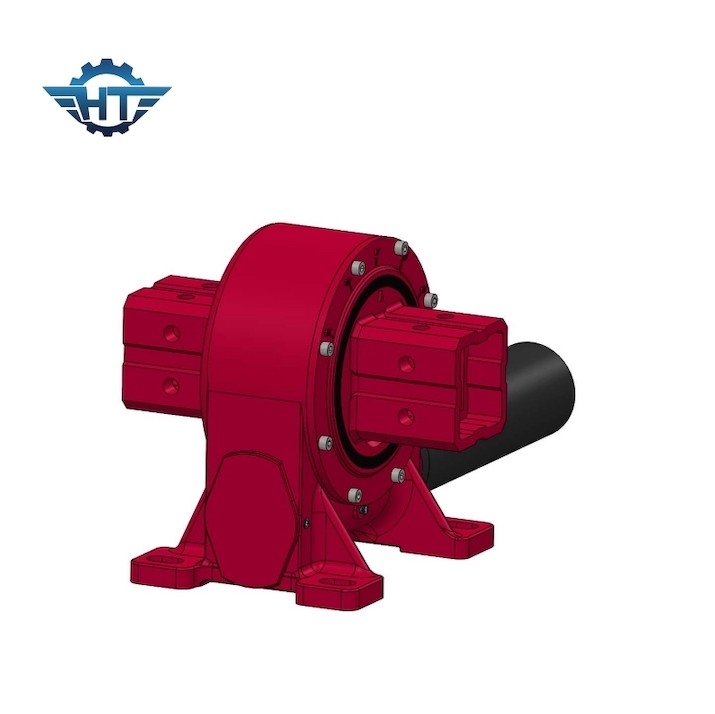

VE5 Envelope Worm Slew Drive For Solar Tracking System
Envelope Worm Slew Drive Description
Slewing drives play a key role in many heavy machinery equipment and facilities, enabling smooth, precise rotational motion. Their high torque capacity, compact design and versatile load support make them an indispensable component in many industrial applications.
Enveloping worm slew drives are designed in solar photovoltaic panel rotation and improves power generation efficiency. They can be applied in PV tracker-single axis & dual axis solar tracking solutions, solar concentrator, solar dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough etc.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes |
251 kg |
Features and Benefits
High Torque Capacity: The slewing drive is designed to withstand heavy loads and has high torque transfer capabilities.
Compact design: The slewing drive has compact dimensions and is suitable for limited installation space.
Supports multiple loads: The slewing drive is able to withstand axial, radial and moment loads, making it suitable for a variety of applications.
Durability: Slewing drives usually use durable materials and sealed designs to adapt to harsh working environments and long service life requirements.
Customizability: The slewing drive can be customized to specific requirements, such as gear ratios and motor options.
Applications
There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.
Typical swing drive applications include, but are not limited to:
1.Solar tracker
2.Wind Turbines
3.Men's lift
4.Hydraulic machinery
5.Telehandler
6.Excavator
7.Lift
8.Cranes
9.Drilling equipment
10.Military equipment
