Product Details:
|
| Model: | 7 Inches | Place Of Origin: | Changzhou, China |
|---|---|---|---|
| Installation: | Vertical | IP Rating: | IP66 |
| Operating Temperature: | -20°C To +80°C | Product Name: | Solar Tracker Slew Drive |
| Speed: | 0.1-1rpm | Voltage: | 24V |
| Highlight: | 7 inches solar tracker slew drive,low maintenance solar tracker slew drive,360 degree rotation solar tracker drive |
||

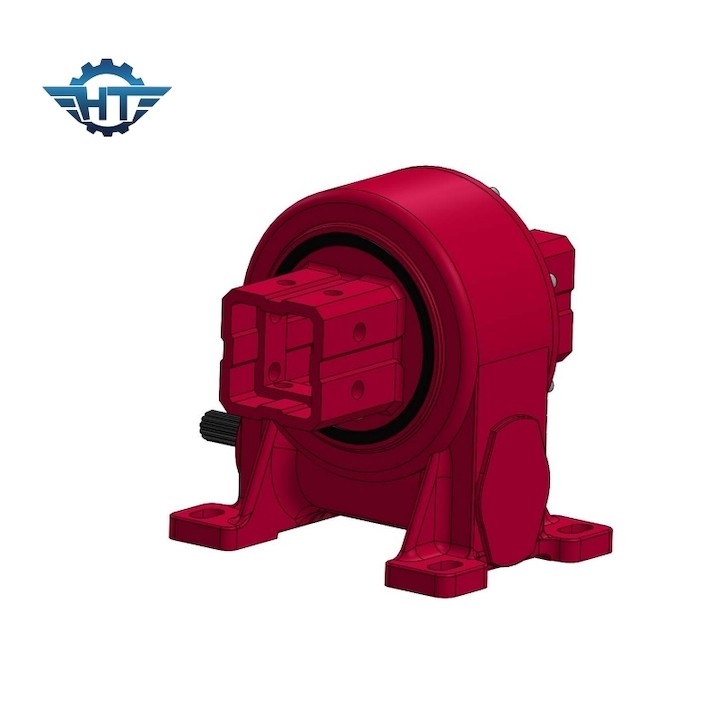

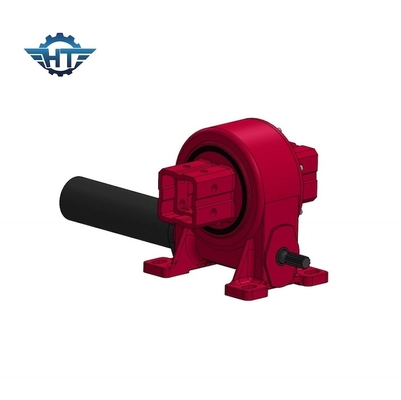

360-Degree Rotation Solar Tracker Slew Drive with Low Maintenance
Vertical Mounted Slewing Drive Description
Solar tracking slewing drives are essential components in solar tracking systems, which aim to optimize the energy output of solar installations. These drives are engineered to withstand the harsh environmental conditions typically encountered in solar power applications, such as extreme temperatures, high winds, and heavy loads. They offer high torque capacity, smooth operation, and accurate positioning to ensure efficient solar tracking.
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Solar Tracking Systems: Slewing drives are widely used in solar tracking systems to enhance the efficiency of solar panels. They are responsible for rotating the panels horizontally and vertically to track the movement of the sun throughout the day. The high precision and torque capabilities of slewing drives allow solar panels to constantly face the sun, maximizing the amount of solar energy captured and improving overall energy output.
