Product Details:
|
| Ip Grade: | IP66 | Self-Locking: | Yes |
|---|---|---|---|
| Model: | SDE12 | Motor Voltage: | 24V DC |
| Feature: | Self Locking Gear | Shipping: | By Air, Train, Sea, Express |
| Rated Output Torque: | 9360 Nm | Efficiency: | 40% |
| Highlight: | Dual Solar Tracking System Slew Drive,IP66 Self Locking Slew Drive,slew drive IP66 |
||

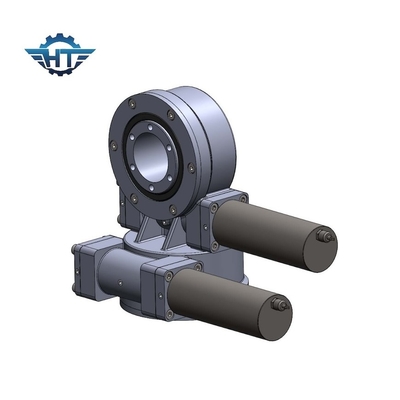

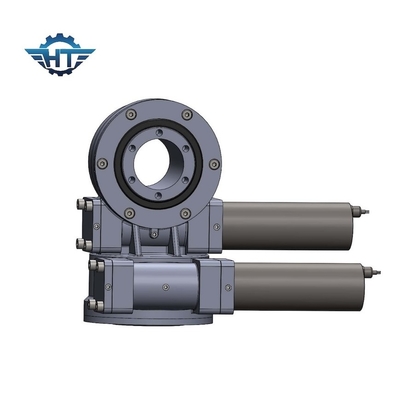

The Dual Axis Slew Drive is available in different motor options, including 24V DC (Optional), making it suitable for a wide range of applications. With an outside diameter ranging from 3-25 inches, this product has the flexibility to handle various loads and torque requirements.
One of the key features of the Dual Axis Slew Drive is its high efficiency, which is up to 40%. This means that the product can provide accurate and reliable positioning while consuming less power, making it an energy-efficient solution for various applications.
The Dual Axis Slew Drive also has an IP Grade of IP66, which means it is protected against dust and water ingress. This makes it a durable and reliable solution for outdoor applications, where it is exposed to harsh weather conditions.
The product's Protection Level is also IP66, providing an extra layer of protection against damage from external factors. This means that the Dual Axis Slew Drive is built to withstand the toughest operating conditions and is suitable for use in harsh environments.
In summary, the Dual Axis Slew Drive is a high-performance product that combines the functions of an Electric Slew Drive and an Enclosed Slewing Drive. It is available in different motor options, has an outside diameter ranging from 3-25 inches, and delivers high efficiency of up to 40%. With an IP Grade and Protection Level of IP66, this product is built to withstand the toughest operating conditions and is suitable for use in various applications.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Other product features include:
The Dual Axis Slew Drive is ideal for use in a wide range of occasions and scenarios. It is suitable for use in solar trackers, wind turbines, satellite antennas, and heavy-duty machinery. Its high efficiency makes it an excellent product for use in applications that require high accuracy and precision, such as in robotics and automation systems. It is also ideal for use in construction machinery and cranes, where it helps to improve the efficiency and accuracy of the equipment.
The HT Dual Axis Slew Drive is a versatile product that can be shipped to various destinations worldwide. Customers can choose to have their orders shipped by air, train, sea, or express. This flexibility in shipping options ensures that customers can receive their orders in a timely and cost-effective manner.
Overall, the HT Dual Axis Slew Drive is a reliable and efficient product designed to meet the needs of a wide range of customers. Its versatility, durability, and high efficiency make it an ideal product for use in various applications. If you are looking for a reliable and efficient electric slew drive for your 2 axis turntable application, the HT Dual Axis Slew Drive is an excellent choice.
