Product Details:
|
| Tilting Moment Torque: | 7000 Nm | Tracking Precision: | 0.15 Degree |
|---|---|---|---|
| Type: | Dual Axis Slew Drive | Pitch Circle: | 170mm |
| Efficiency: | 40% | Feature: | Self Locking Gear |
| Ip Grade: | IP66 | Self-Locking: | Yes |
| Highlight: | IP66 Dual Axis Slew Drive,Electric Dual Axis Slew Drive,7000 Nm Dual Axis Slew Drive |
||

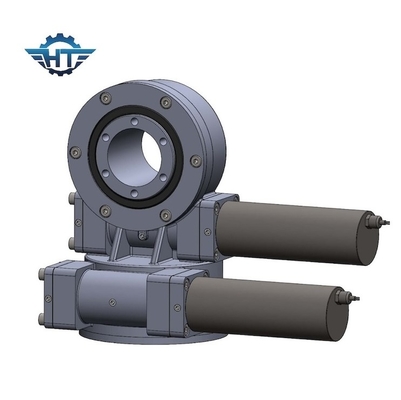

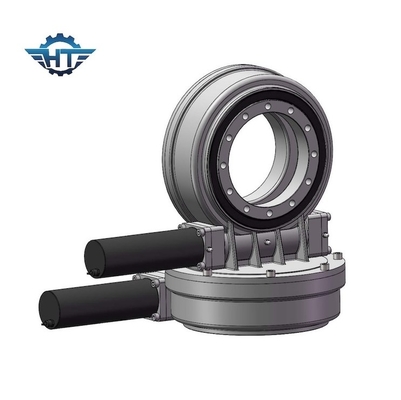

The SDE7 Dual Axis Slew Drive is a two-axis turntable that is capable of handling a rated output torque of 1026 Nm. This feature makes it ideal for use in applications with less than 30 square meters solar panels or dishes. The tilting moment torque of 7000 Nm is also an excellent attribute that ensures the drive can withstand significant radial and axial loads.
This product comes with an IP66 protection level, which makes it highly resistant to dust and water. The IP66 rating is an essential feature that ensures the Dual Axis Slew Drive can operate in harsh environments without affecting its performance. This protection level offers maximum protection against dust, water, and other environmental factors that could damage the drive.
The Dual Axis Slew Drive is a unique product that is designed to provide excellent performance and durability. This product is commonly used in a wide range of industrial applications, including solar trackers, wind turbines, and heavy-duty machinery. Its dual-axis turntable design provides excellent precision and control, making it ideal for use in applications that require accurate positioning.
In conclusion, the Dual Axis Slew Drive is an excellent product that offers high efficiency. Its IP66 protection level ensures that it can operate in harsh environments without affecting its performance. This electric slew drive is a top-of-the-line product that is ideal for use in solar tracking applications that require high torque output and accurate positioning.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Product Name: Dual Axis Slew Drive
One of the key features of this dual axis slew drive is its self-locking gear, which ensures stability and security during operation. This makes it an ideal choice for applications that require precision and accuracy, such as solar trackers, wind turbines, and heavy machinery.
In addition, this product is IP66 rated, which means it is dust-tight and protected against powerful jets of water. This makes it suitable for use in a wide range of environments, including outdoor settings with harsh weather conditions.
The dual axis slew drive is designed for use in 2 axis turntable applications, where precise and smooth rotation is required. Its enclosed slewing drive design ensures that it is protected from external factors such as dust, dirt, and moisture, which can cause damage and reduce its lifespan.
Whether you are looking for a reliable and efficient solution for solar tracking, wind turbines, or other heavy machinery, the dual axis slew drive from HT is an excellent choice. With its powerful torque, self-locking gear, and enclosed slewing drive design, it is the perfect solution for a wide range of applications.
