Product Details:
|
| Tracking Precision: | 0.15 Degree | Self-Locking: | Yes |
|---|---|---|---|
| Efficiency: | 40% | Feature: | Self Locking Gear |
| Outside Diameter: | 3-12 Inch | Type: | Dual Axis Slew Drive |
| Motor: | 24V DC(Optional) | Protection Level: | IP66 |
| Highlight: | Self Locking Gear Hydraulic Slew Drive,Precision Tracking Hydraulic Slew Drive,Hydraulic dual axis slew drive |
||

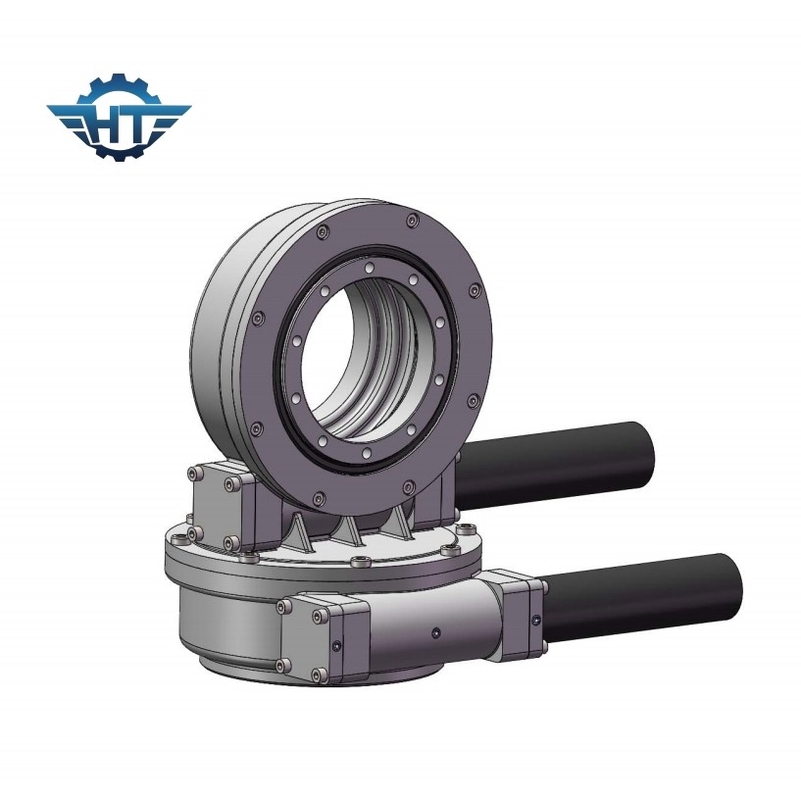

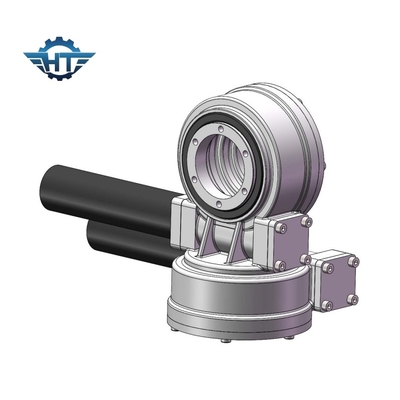

With a speed range from low to high, this dual axis slew drive can operate at different speeds depending on the application requirement. SDE5 dual axis slewing drive has a tilting moment torque of 6000 Nm, which allows it to handle less than 20 square meters without compromising performance. The maximum holding torque is 9200 Nm, making it one of the robust dual axis slew drives in the market.
The dual axis slew drive has an efficiency of 40%, which means that it can transfer up to 40% of the input power to the output. This high level of efficiency ensures that the drive consumes less power, resulting in reduced operational costs and energy savings.
The hydraulic slew drive is designed with a compact and robust structure, making it easy to install and maintain. It is also suitable for both horizontal and vertical installations, providing maximum flexibility for different applications.
The Dual Axis Slew Drive is a reliable and high-performance solution that can meet the requirements of various industrial and commercial applications. Its ability to handle heavy loads, operate at different speeds, and deliver high efficiency makes it an ideal choice for customers looking for a durable and cost-effective two-axis turntable.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
The SDE5 Dual Axis Slew Drive is an Enclosed Slewing Drive that features a maximum holding torque of up to 9200 Nm. It has a speed range from 0~1 rpm and pitch circle 100mm. This product is self-locking and can be shipped by air, train, sea, or express.
The HT Dual Axis Slew Drive is a self-locking gear that provides a high level of efficiency, up to 40%. This feature ensures that the product can operate smoothly without any slippage, even in harsh environments. The product is designed to provide a high level of precision and accuracy, making it an ideal choice for applications that require precise positioning.
The HT Dual Axis Slew Drive has a tilting moment torque of 5800 Nm and a rated output torque of 2000 Nm. This makes it a powerful product that can handle heavy loads with ease. Additionally, the product is easy to install and maintain, making it a popular choice among users.
The HT Dual Axis Slew Drive is suitable for use in both electric and hydraulic systems, making it a versatile product. It can be used in a wide range of applications, including solar trackers, wind turbines, and satellite dishes. The product is designed to withstand extreme weather conditions, making it ideal for use in harsh environments.
In summary, the HT Dual Axis Slew Drive is a high-quality product that is designed to provide a unique solution for 2-axis turntable applications. Its self-locking gear and high-efficiency make it an ideal choice for applications that require precision and accuracy. Its powerful torque and ease of installation make it a popular choice among users. It is suitable for use in both electric and hydraulic systems and can be used in a wide range of applications, including solar trackers, wind turbines, and satellite dishes.
