High-Torque Solar Tracker Drive Solution for Reliable PV Power Generation
Description

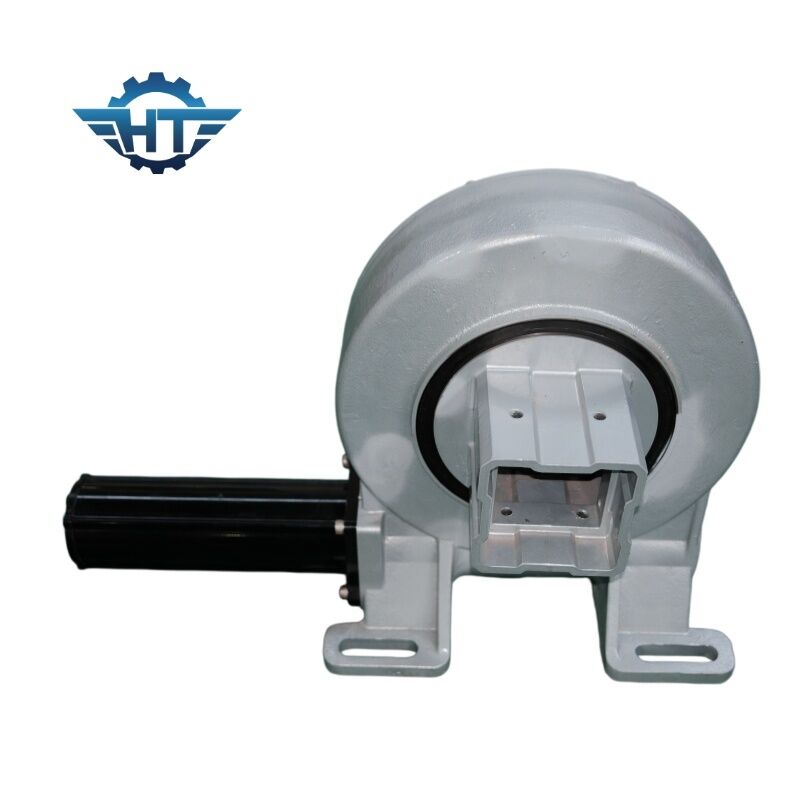

The VE9 compact worm-gear slew drive is a high-performance rotary drive solution designed specifically for solar tracking systems, including single-axis PV trackers, dual-axis solar trackers, and Concentrated Solar Power (CSP) applications.
Combining a precision hourglass worm-gear mechanism with an integrated 24V DC gear motor, the VE9 slew drive delivers reliable torque transmission, precise positioning, and exceptional load-bearing capacity in outdoor solar environments.
With its compact structure, self-locking capability, and high overturning moment capacity, the VE9 is engineered to enhance the stability and service life of solar tracking systems amidst varying weather conditions.
Features
Robust worm-gear transmission structure
High-strength housing
Precision bearing support
Weather-resistant sealing design
Low maintenance requirements
It is designed to provide stable rotational control throughout the entire lifecycle of the solar tracking system.
Customized Solar Tracker Drive Solutions
Hangtuo offers customized slewing drive solutions based on project requirements, including:
Various gear ratios
Customized mounting dimensions
Motor integration
Optional encoders and sensors
Special environmental protection requirements
Please contact us for model selection or technical support for your next solar tracker project.
VE Worm Gearbox Slew Drive Technical Data
| Model | Ratio | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Why Choose the VE9 Solar Tracker Slew Drive?
1. Compact Design and High Torque Density
Unlike traditional rotary solutions that require separate gearboxes and mounting components, the VE9 integrates the slew gearbox and drive mechanism into a single compact unit to meet the rigorous demands of solar tracking applications. This design helps to:
Reduce installation space requirements
Simplify tracker structural design
Lower system integration costs
Improve on-site installation efficiency
2. Self-Locking Worm-Gear Mechanism to Withstand Wind Loads
Solar trackers operate in open outdoor environments where wind loads can generate immense impact forces. The VE9 utilizes an hourglass worm-gear design with inherent self-locking characteristics, maintaining the solar panel's position even when the motor is powered off.
Key advantages include: enhanced wind resistance, reduced risk of back-driving, improved tracker safety, and lower energy consumption during idle periods.
3. Integrated 24V DC Motor for Easy System Integration
The VE9 can be equipped with a 24V DC gear motor, providing a complete drive solution for PV tracking systems. It supports Hall sensor feedback. VE9 Slewing Drive Applications
The VE9 worm-gear slewing drive is suitable for:
Solar tracking systems
Single-axis PV trackers
Dual-axis solar trackers
Utility-scale ground-mounted PV plants
Distributed PV systems
Renewable energy equipment
Concentrated Solar Power (CSP) heliostat systems
Solar concentrators
Renewable energy positioning systems
Industrial applications
Construction machinery
Mobile work platforms
Automated positioning systems
