Product Details:
|
| Speed: | 0~1 Rpm | Application: | Satellite Antenna |
|---|---|---|---|
| Motor: | Electric Motor, Stepper Motor | IP Class: | IP66 |
| Mounting Bolts: | 6*M10 | Mounting Specification: | 80mm |
| Centre Hole: | 65mm | Ratio: | 31:1 |
| Highlight: | Satellite Antenna slewing ring drive,Slewing Ring Drive 65mm,65mm solar tracker drive |
||

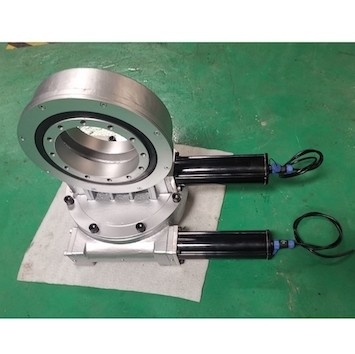

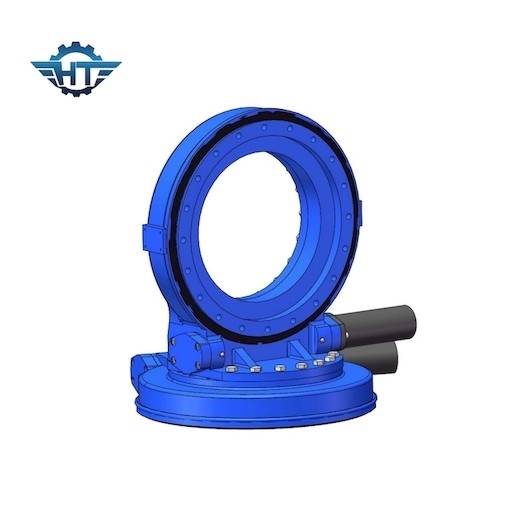

Dual Axis 3 Inches Slewing Drive With 24VDC Planetary Motor For Satellite Antenna
Product Description
The worm slewing drive of Hangtuo Machinery has an ultra-compact slewing drive unit with extremely high power density. This design is particularly suitable for transmitting extremely high forces and torques in limited installation spaces. Worm drives are used in steering gears for cranes and heavy vehicle transmissions, as well as construction, forestry and agricultural machinery. For these specific applications, we are continually refining our products to maximize torque transfer and minimize maintenance costs.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Applications
The traditional satellite antenna base is fixed, and some highly excited satellites need a satellite antenna swivel base that can rotate in time to drive the satellite antenna to rotate to maintain continuous reception of satellite signals. By installing the slewing drive on the base, the base can become a rotating antenna base, and our slewing drive can also be equipped with a speed-adjustable motor, which allows the system to arbitrarily adjust the rotation speed within the speed range, which is beneficial to the signal catch.
