Product Details:
|
| Model: | SDE7 Slewing Drives | Tracking Precision: | 0.15° |
|---|---|---|---|
| Gear Ratio: | 57:1 | Rated Output Torque: | 2 KNm |
| Holding Torque: | 13.2 KNm | Tilting Torque: | 7.5 KNm |
| Production Time: | 3~45 Days | Standard Color: | Orange |
| Highlight: | Solar Tracker Slewing Bearing Drive,Tower CSP Slewing Bearing Drive,Tower CSP Solar Tracker Slewing Drive |
||

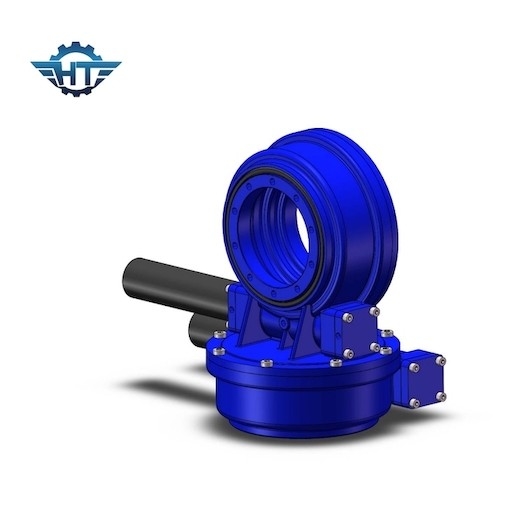

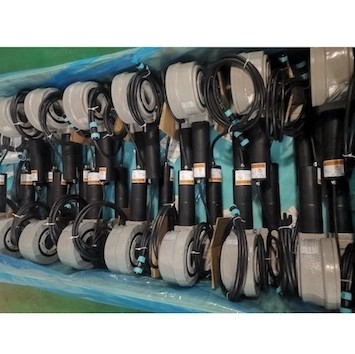

The slewing drive is a new type of slewing product, which was often referred to as a slewing bearing in the past. It usually consists of a worm, a slewing bearing, a housing, a motor and other components. Since the core components are slewing bearings, they can bear axial force, radial force and overturning moment at the same time, and have the characteristics of convenient installation, convenient maintenance and higher IP level.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Applicatons
Slewing rotary drive devices are widely used in photovoltaic, concentrated photovoltaic CPV, CSP, including tower CSP system, Fresnel system, trough CSP system, construction applications, including truck cranes, elevators, turntables, port machinery, Modular vehicles, small wind power generation systems and satellite communication communication systems.
