Product Details:
|
| Model: | SDE9 | Gear Ratio: | 61:1 |
|---|---|---|---|
| Rated Output Torque: | 4300 Nm | Tilting Moment Torque: | 16 KNm |
| Holding Moment Torque: | 27.2 KNm | Efficiency: | 40% |
| Standard Color: | RAL9006 | Feature: | Enclosed Self Locking |
| Highlight: | 5 Inches Dual Axis Slew Drive,Dual Axis Slew Drive 800NM Torque,Wear Resistant slewing gearbox |
||

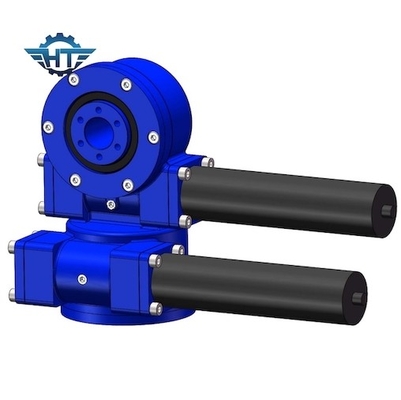

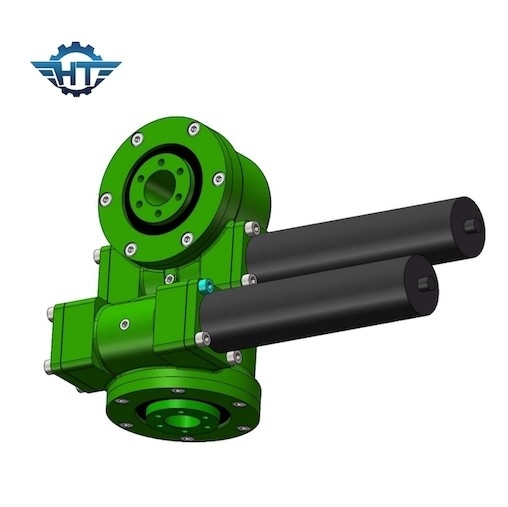

61:1 Gear Ratio 5 Inches Worm Gear Slewing Ring For Dual Axis Solar Tracking System
5 Inches Worm Gear Slewing Ring Description
Worm Drive, which is a higher wear-resistance worm gear drive, could load strong output torque and tilting moment torque with the well performance of stability and reliability. The worm drive is also available for higher tracking precise field like CPV, CSP, satellite applications.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Applicatons
By applying a dual axis slewing drives on a solar tracking system, the solar panels will always be oriented towards the sun, no matter the season, time of the day or latitude of the regions. It can let the project owner gain more electricity capacity up to 40% and thus more yield.
