Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SDE5" |
|---|---|---|---|
| Gear Ratio: | 37:1 | Holding Torque: | 9200 Nm |
| Tilting Torque: | 6000 Nm | Axial Load: | 16 KN |
| Radial Load: | 27 KN | Efficiency: | 40% |
| Highlight: | SDE7 Dual Axis Slew Drive,Dual Axis Slew Drive waterproof Sealing,16kN Axial Load slewing ring drive |
||

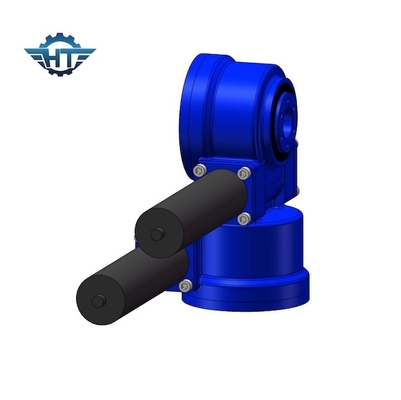

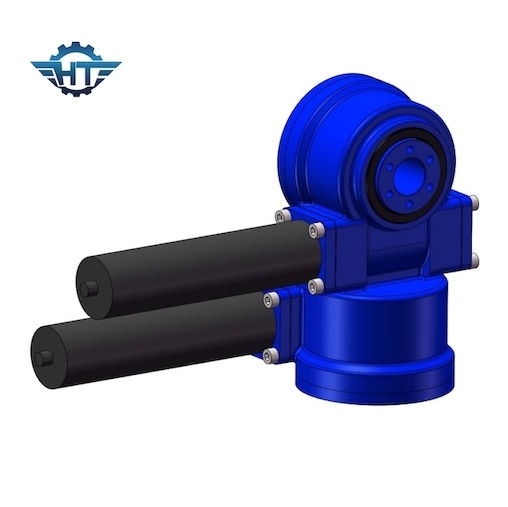

SDE5 Dual Axis Slewing Drive, Water Proof Sealing For PV And CSP Solar Trackers
SDE5 Dual Axis Slewing Drive Description
| Product Name | SDE5 Slewing drives with 43Nm gear motors |
| Output Torque | 800 N.m |
| Tilting Moment Torque | 6000 N.m |
| Holding Torque | 9200 N.m |
| Static Axial Rating | 16 kN |
| Static Radial Rating | 27 kN |
| Motor Alternatives | 380V/220V AC Motor, Stepper Motor, Brushless Motor |
| Products Style | Dual Axis, CPV, Solar Dish, Parabolic, Heliostat |
| Application Feature | Solar Tracking System, Industrial Machinery |
Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Application
SDE series solar photovoltaic slewing drives are designed for
High-performance products developed and designed for solar tracking systems, suitable for photovoltaic single and double axis tracking systems, concentrating photovoltaic power generation systems, tower heliostats, butterfly Stirling power generation, heating, trough concentrating power generation, heating and other solar energy Applications in the tracking system. It can also be customized according to your needs.
