Sun Tracking Solar Slewing Drive Horizontal 24V Stepper Motor

FlatTracking Sun Solar Slewing Drive With 24V Stepper Motor And Encoders For Solar Trackers

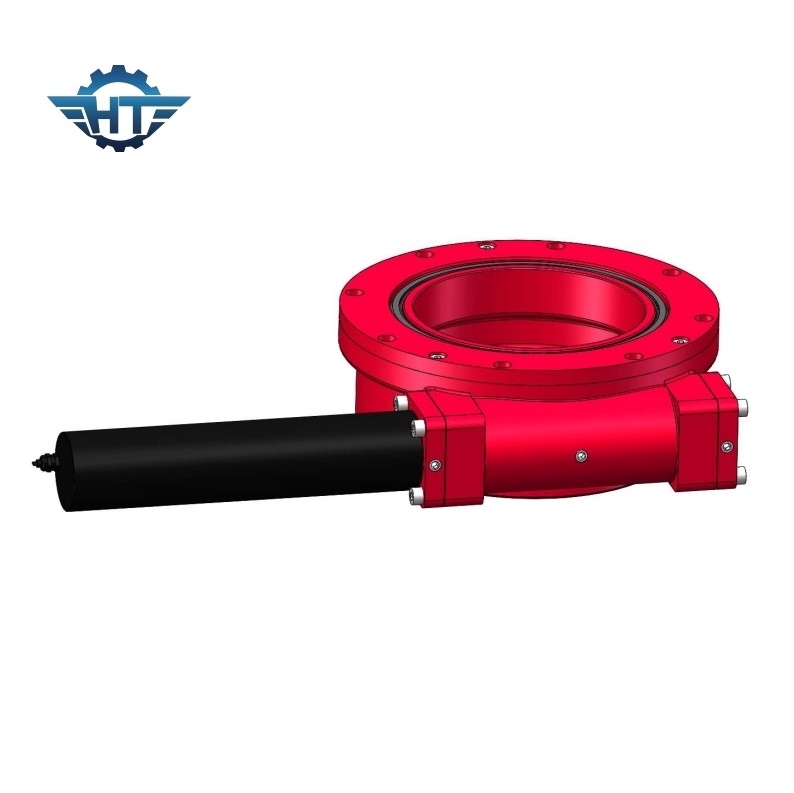

Tracking Sun Solar Slewing Drive

The sun tracking slewing drive is a core part in turning the oblique single-axis tracking system which is a cost-effective product mainly developed and designed for the construction of large-scale power stations, and is widely used in middle and low latitudes.

The system only needs the entire array can be automatically tracked by using a set of slewing drive and controller. The unique linkage structure and maintenance-free slewing drive can make it reliable and reliable system stability, low failure rate and low maintenance costs. Compared with the traditional fixed installation bracket, it can increase the annual power generation by about 30%, which is a large-scale power generation system.
Ideal for station construction.

Key Features

1. An unlimited rotating angle and range

2. Provide the most efficient transmission of high power and torque possible

3. Completely enclosed and sealed housing withstands harsh environments and increases safety

Performance Parameters of SE series

Applications

Flat oblique single

"Flat oblique single", or "flat uniaxial with inclination" is the product of the combination of the above two modes. In fact, the flat inclined single should belong to the category of the flat single axis, its rotation axis is horizontal, and his entire tracking system can follow the flat single axis system. The difference is that each component on its axis of rotation has a certain inclination to the south.

Inclined single axis:

The inclined uniaxial has a certain inclination to the south, so this situation is better than the flat uniaxial. But the oblique uniaxial also has its own limitations. Due to the inclination to the south, the inclined uniaxial support becomes higher and higher from the ground on the north side as the rotation axis grows, and because the rear column cannot be made too high, the rotation axis of the inclined uniaxial is limited. It cannot be made into a long shaft as long as a single shaft, but can only be independent one by one, which increases its cost and, of course, increases the floor space.

Flat Single Axis

The flat uniaxial tracking bracket can significantly increase the power generation by tracking the sun's trajectory in the east-west direction, but the flat uniaxial also has its disadvantages. Because the flat uniaxial support has no inclination to the south, its radiation receiving ability is poor when the sun altitude angle is low, which is especially obvious in high latitudes. There has been a decrease, especially in winter, and the power generation is even lower than that of fixed mounts.
