Product Details:
|
| Model: | 7 Inches | Gear Ratio: | 57:1 |
|---|---|---|---|
| Efficiency: | 40% | Precision: | ≤0.1 |
| Driver: | Electric Motor | Application: | East To West Sun Tracking |
| Feature: | Self-locking | Color: | As Requested |
| Highlight: | 7" Slew Ring Drive,Sun Tracker Worm Slewing Drive,Sun Tracker worm drive slew ring |
||

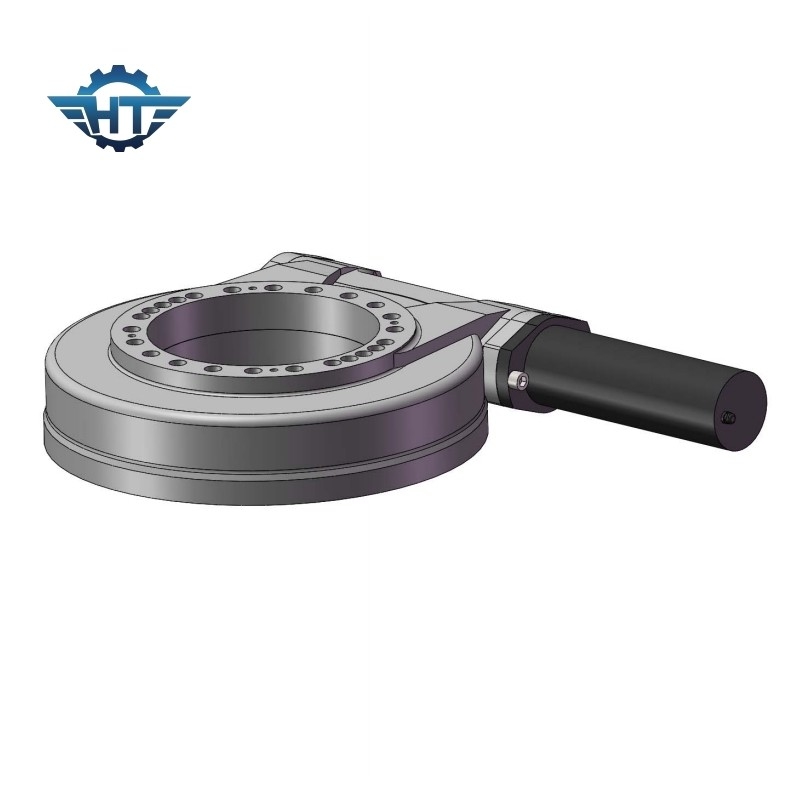

SE7 Worm Gear Slewing Ring Drive For Single Axis East To West Single Axis Sun Trackers
East to West Tracking Slewing Drive Description
We design our slewing drives on the basis of 10 warranty time and 30-year reliable field life, and with minimal maintenance and higher nominal torque and holding moment, which are imperative for keeping a plant running at top efficiency.
The slewing drives are at the heart of the solar tracking system, they can help moving the whole system to track the sun in order to increase the capacity.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Features
1. High tracking accuracy
2. Easy maintenance, lubricate according to our manual
3. Hour-glass worm technology
4. Maximum survivability load holding capability
5. High accuracy
6. Rotation in two directions
7. Rich experience in design and manufacture of slewing drive
8. Material: quality bearing Steel
9. Compact structure
Applications
For solar energy: It is designed in a solar tracking system to increase the efficiency of power generation.
Industrial use: Mainly used to drive two objects that rotate relative to each other at 360°.
In the past two years, with the country's strong support for the new energy field, supporting equipment manufacturers have also sprung up.
The slewing drive is a derivative of the slewing bearing, and the products currently range from 1 inche in diameter to 25 inches in diameter. There are 10 models and more than 60 varieties, which meet the application in different fields. In recent years, the solar photovoltaic power generation industry has been widely used, and the products are also used in flatbed trucks, log cranes, single-column cranes, and beam lifters. , On the mechanical equipment such as truck cranes, aerial work vehicles, solar patrols, automation equipment, etc., in different industries, the power drive systems are also different. For example, in the field of new energy, DC planetary reducers and AC motors are generally configured; construction machinery The industry mainly configures hydraulic motors as the power source.
