Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SDE7" |
|---|---|---|---|
| Gear Ratio: | 57:1 | Duty Cycle: | 30 Years |
| Type: | Dual Axis | Standard Color: | RAL9006 |
| Mounting Bolts: | 6*M10 | HS Code: | 84834090 |
| Highlight: | SDE7 Dual Axis Slewing Drive,12V Planetary Motor Slewing Drive Gearbox,SDE7 worm gear slew drive |
||

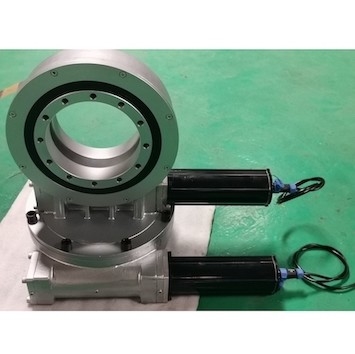

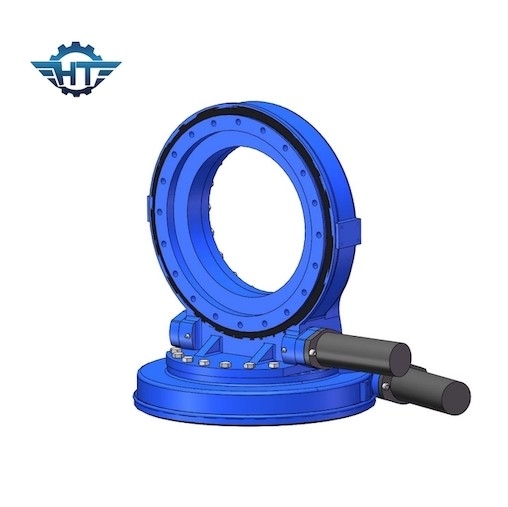

SDE7 Dual Axis Slewing Drive Gearbox With 12V Planetary Motors For Solar Tracker
Dual Axis Slewing Drive Description
There are two common drive and control architectures for dual-axis trackers: distributed drive and linked drive. Regardless of the design, the slewing drive is undoubtedly the central component of the control unit. The precision and rigidity of the slewing drive are closely related to the safe operation of the system.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Electric Gear Motor Parameters
| Motor Data | Planetary Data | ||
| Rated Voltage | 24VDC | Ratio | 398:1 |
| Rated Current | 1.3A | Output Torque | 43Nm |
| Rated Speed | 800Rpm | Output Speed | 2Rpm |
| Protected Level | IP55/65/66 | Noise | <60db |
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
