Product Details:
|
| Type: | 9" Slew Drive | Gear Ratio: | 61:1 |
|---|---|---|---|
| Application: | Solar Tracking System | Motor: | 24VDC With Hall |
| Installation Method: | Vertical Mounted | Material: | 42CrMo |
| Weight: | 60 Kg | Warranty: | 10 Years |
| Highlight: | VE9 Self Locking Slew Ring Drive,24V Motor Worm Gear Slewing Drive,24V Motor Vertical Slewing Drive |
||

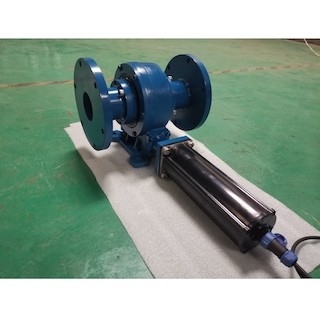

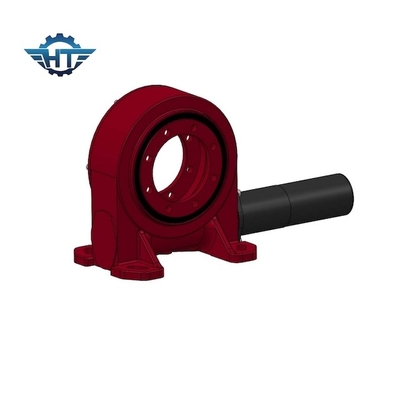

VE9 Self Locking Worm Gear Slewing Drive With 24VDC Motor With Hall Sensors For Solar System
Worm Gear Slewing Drive
higher wear-resistance, which can load strong output torque and tilting moment torque with the well performance of stability and reliability. The worm gear slewing drive is also available for higher tracking precise field.
Our slewing drive featured with reverse self-locking because of worm gear self-locking characteristics. This feature greatly enhances the stability of the operating and improve safety factor. Compared to the traditional slewing products, worm gear slewing drive is easy to install, easy to maintain, and its compact design saves considerable installation space.
Technical Parameters
| VE Model Performance Parameters | |||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | Tilting Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Precision (°) | Self-locking | Weight (Kg) |
| 3" | 600 | 1800 | 1500 | 22 | 15 | 31:1 | ≤0.1 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | ≤0.1 | Yes | 18kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | ≤0.1 | Yes | 32kg |
| 8" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | ≤0.1 | Yes | 28kg |
| 9" | 4300 | 30800 | 16000 | 60 | 130 | 61:1 | ≤0.1 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | ≤0.1 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | ≤0.1 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | ≤0.1 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | ≤0.1 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | ≤0.1 | Yes | 251 kg |
Advantages
1. Strong overturning moment based on enveloping worm gear structure
2. Adopt enveloping worm drive
3. Drive larger load for using multi-tooth contact
4. Better static self-locking function
