Product Details:
|
| Material: | 50Mn, 42CrMo, QT | Gear Ratio: | 125:1 |
|---|---|---|---|
| Rated Output Torque: | 16 KNm | Holding Torque: | 89 KNm |
| Tilting Torque: | 65 KNm | Standard Color: | RAL 9006 |
| Backlash: | Less Than 0.1 Degree | Rotating Type: | Double Axis |
| Highlight: | slewing ring drive,small slew drive |
||

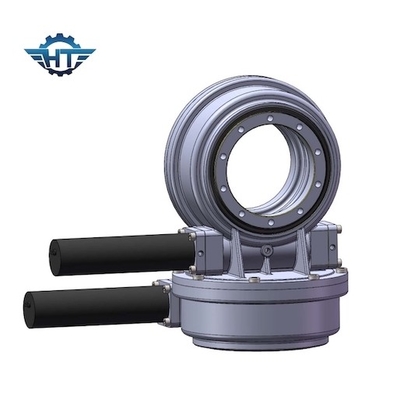

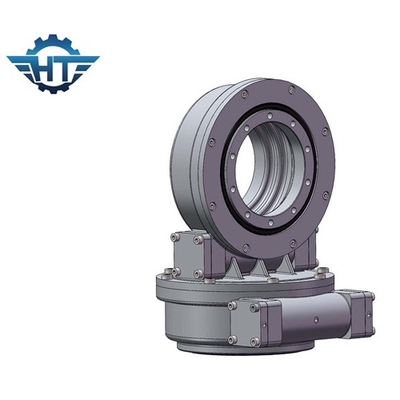

SDE21 Gear Ratio 125 / 1 Hourglass Worm Gear Slew Drive With Enclosed Housing For CPV
Worm Gear Slew Drive Description
Slew drives are used for concurrent transmission of axial and radial forces as well as transmission of tilting moments. Slew drives consist of a ball or roller slewing ring, hydraulic or electric drives, and a completely enclosed housing. Series SE slew drives are designed with worm gear.
SDE3,SDE7,SDE21 ISO9001/CE certificated slew drive worm gear for sun tracker
1) Higher output torque and holding load
2) Top tracking precision
3) Strong corrosion resistance and sealing effective
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
Application Fields
| Wind Power Field | Metallurgical Machinery |
| Light Industry | Heavy Equipments |
| Port/Marine Machiner | Military Products. |
| Construction Machinery Mining | Steel Works Equipment |
| Sewage Treatment Plant | Agricultural Machinery |
