Product Details:
|
| Material: | 42CrMo, QT | Warranty: | 5 Years |
|---|---|---|---|
| OEM Service: | Available | Rotate Direction: | Any Direction |
| Color: | Silver Grey | Installation Site: | Roof And Field |
| Feature: | Quick Installation | Production Time: | Sample In Stock |
| Highlight: | Stepper Motor Dual Axis Slew Drive,Dual Axis Slew Drive 14 Inches,14 Inches solar slew drive |
||

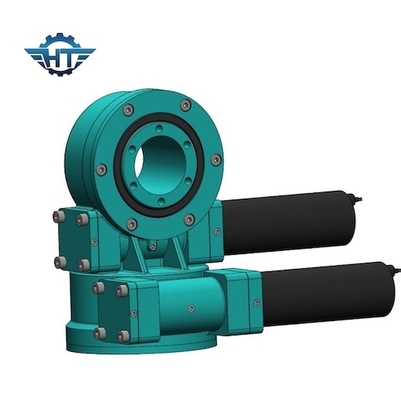

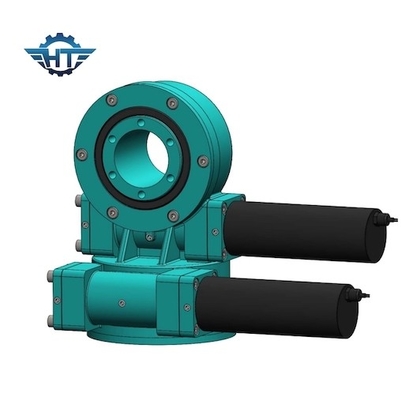

Dual Axis Worm Slewing Gearbox With Stepper Motors For Tower Concentrated Solar Power
Worm Slewing Gearbox Description
There are two types of sun tracking systems, single axis and dual axis sun tracking systems. Usually we use vertical or horizontal single-axis slewing drives in single-axis tracking systems, and dual-axis slewing drives in dual-axis solar tracking systems. Occasionally, two single-axis slewing drives can also be applied to a dual-axis sun-tracking system. The single-axis tracker has a free rotation axis, and the dual-axis tracker can achieve free movement from east to west and from north to west.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Application
Dual axis solar tracking system
Dual axis slewing drive are usually installed in the dual axis solar tracking system. The slewing drive solar tracking system can fully automatic tracking the sun in a higher precision manner, about 40% more power than fixed mounting system. The self locking mechanism can improve the safety factor of the sun tracking system. It can adapt to install in the various kinds of terrain area. Its installation is fast and simple and easy handling. It consumes low power and is easy to maintain.
