Product Details:
|
| Model: | 5 Inch | Gear Ratio: | 37:1 |
|---|---|---|---|
| Efficiency: | 40% | Application: | Dual Axis Solar Trackers |
| Place Of Origin: | Changzhou, China | Noise Level: | ≤60dB |
| Operating Temperature: | -20℃~+120℃ | Output Voltage: | 24V |
| Highlight: | slew drive motor,slewing ring gear |
||

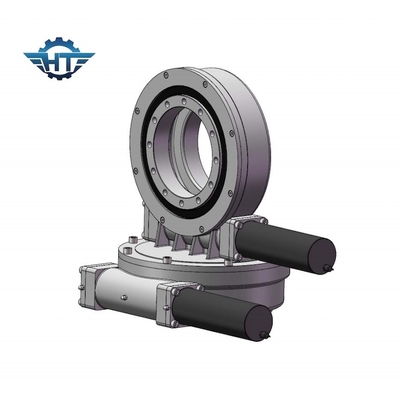

SDE Slew Drive Gearbox, Small Backlash With Nema For Solar Plant And Satellite Antenna
SDE Slew Drive Gearbox Description
Dual-axis slewing drive designing with two axis drive at the same time. It is more tooth contacting and double output torque than SE Series slewing drive.This product has a long history, process technology has been very mature now.
SDE Model Performance Parameters
| SDE Model Performance Parameters | ||||||||||
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
Advantages
1. Better protective performance
2. The oil seal can prevent the grease leaking effectively
3. The framework oil seal keeps shape and tension and guarantees the continuous and effective running of transmission part.
4. The oil seal is high heat-resisting and wear-resisting performance.
