Product Details:
|
| Model: | 3 Inches | Gear Ratio: | 31:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Dual Axis |
| Application: | Solar Power Plant | OEM Service: | Available |
| Place Of Origin: | Changzhou, China | Driver: | 12/24V DC |
| Highlight: | slew drive motor,slewing ring gear |
||

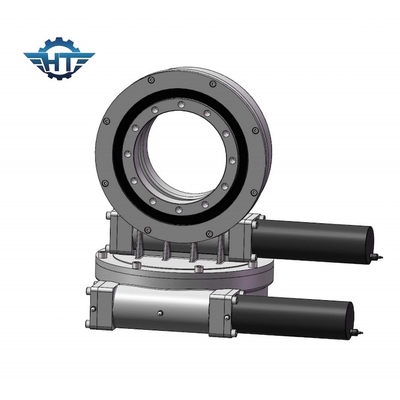

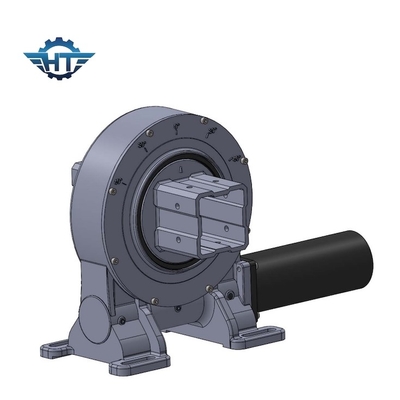

SDE 3'' Dual Axis Slew Drive Gearbox With Hydraulic Planetary For Solar Power Plant
Dual Axis Slew Drive Description
There are many applications in which the slewing drive can be utilized, primarily because it is perfect for applications that require both load-holding power and rotational torque strength.
We have a wide range of slewing drive with output torque ranges from 221 lbf.ft to 15800 lbf.ft.
Slewing rings with integral worm shafts are becoming increasingly popular due to the simplicity of installation and are used in truck mounted cranes, small wind turbines, access platforms, turntables, solar tracking devices, satellite communication systems, and simple materials handling devices. High precision and zero backlash units are similarly applied in specific projects. In addition, we can offer various electric and hydraulic motors and gearboxes to match.
SDE Model Slewing Drive Performance Parameters
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 637.5 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
Applications
Typical slewing drive applications include but are not limited to: solar trackers, wind turbines, man lifts, hydraulic machinery, telescopic handles, diggers, lifts, cranes, drilling equipment, military equipment, robotic system.
