Product Details:
|
| Type: | Enclosed SE Series | Application: | Car Holding Platforms |
|---|---|---|---|
| Driver: | Hydraulic Motor | IP Grade: | IP66, IP65 |
| Color: | As Requested | Effciency: | 40% |
| Model: | SE9 Inches | Ratio: | 61:1 |
| Highlight: | IP65 Worm Gear Slewing Ring,Worm Gear Slewing Ring 380V,IP65 slewing bearing drive |
||

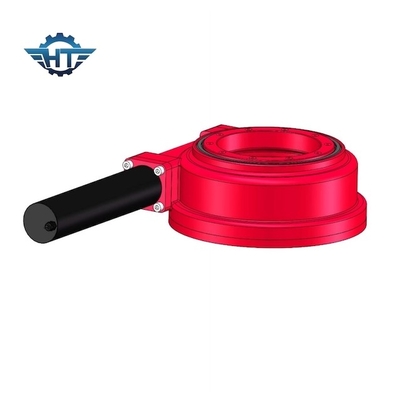

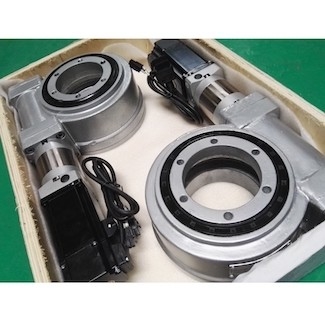

IP66 Enclosed Slewing Drive With Hydraulic Motor For Rotate Car Holding Platforms
Enclosed Slewing Drive Description
Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
SE7 Slewing Drive Technical Parameters
| Product Name | SE7 Slewing drive with 43Nm 24Vdc gear motors |
| Output Torque | 1750 N.m ; 1291.5 ft.lbs |
| Tilting Moment Torque | 10500 N.m; 7749 ft.lbs |
| Holding Torque | 13200 N.m ; 9741.6 ft.lbs |
| Axial Load | 132 kN ; 29700 lb |
| Radial Load | 58 kN ; 13050 lb |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machiner |
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Key Features
1. Ready-to-install system with integrated slewing ring and easy to integrate into existing applications
2. Reduced maintenance costs
3. Compact packages for space saving installations
4. Available with flanges for all standard electric motors and hydraulic motors
5. Worm driven
6. Sealed raceway system
7. Modular construction allows very quick modifications
8. Extended life-Housing which completely encloses the gearing (grease reservoir, protection against contamination and contact)
9. Maximum load capacity in compact design
