Product Details:
|
| Model: | 7 Inches | Gear Ratio: | 57:1 |
|---|---|---|---|
| Applications: | Machines | Place Of Origin: | Changzhou, China |
| Driver: | Hydraulic Motor | Installation: | Horizontal, Vertical |
| Color: | As Requested | Backlash: | ＜0.15° |
| Highlight: | Hydraulic Motor Vertical Slewing Drive,Vertical Slewing Drive SE7,Forged solar tracker drive |
||

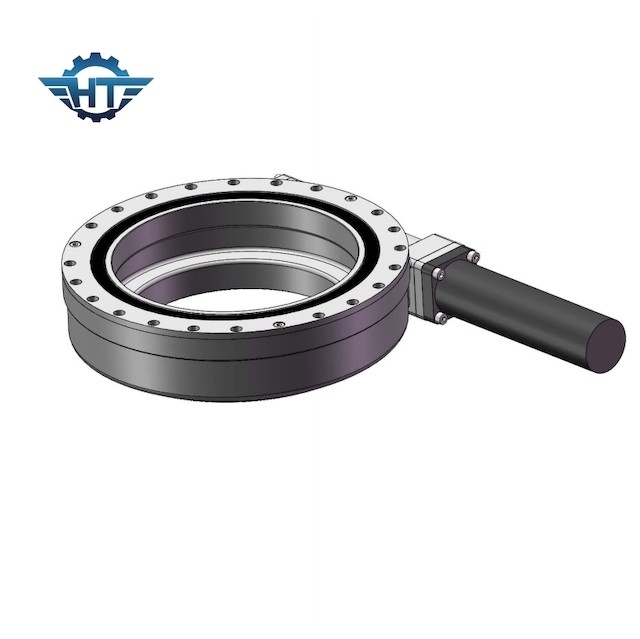

Small Size Hydraulic Drived Gearbox, 7 Inches With Enclosed Housing For Machines
Hydraulic Drived Gearbox Description
Slewing ring bearings are used in rotating and turntable applications.
Hangtuo's slewing ring bearing employs double envelop worm and gear design that provides a high precision, high torque. The bearing and gears are assembled into a self-locking, and ready-to-install housing optimized for system performance.
SE7 Slewing Drive Parameters
| Model Number | SE7 |
| Brand Name | Hangtuo |
| Gear Ratio | 57:1 |
| Output Torque (Nm) | 2000 |
| Tilting Torque (Nm) | 13500 |
| Holding Torque (Nm) | 13200 |
| Weight (kgs) | 21 |
| Working Temperature (℃) | -30～+120 |
| Place Of Origin | Changshu, China (Mainland) |
| Inspect | Full inspection |
| Processing | Forging/machining/coating/assembly |
| Service | 24 hours online |
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Features
1. cost-efficient workhorse in the industry
2. used for rotation under extreme loads and conditions
3. compact with a high power density
4. have a housing that encloses the system to provides protection from harsh environment
5. allow for simple integration and installation into any system
6. can be customized
7. self-locking to increase the safety
Applications
Slewing ring bearings are ready-to-install rotary joints for wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
3. by express, TNT, FEDEX, DHL.

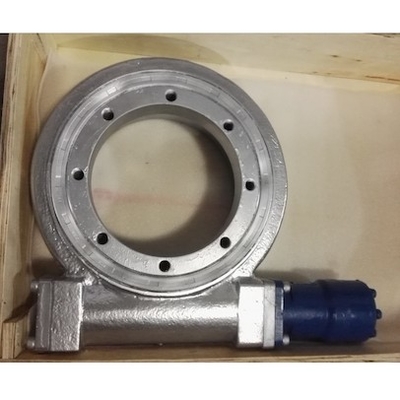

Packaging:
Wooden case free from fumigation
