Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SE21" |
|---|---|---|---|
| Gear Ratio: | 125:1 | Rated Output Torque: | 16 KNm |
| Tilting Torque: | 205 KNm | Efficiency: | 40% |
| Color: | RAL 9006 | Seal Type: | NBR+PVC, FB Type |
| Highlight: | NBR PVC Seal Enclosed Slewing Drive,Slewing Drive For Solar Tracking System 21 Inch,21 Inch worm gear slewing ring |
||

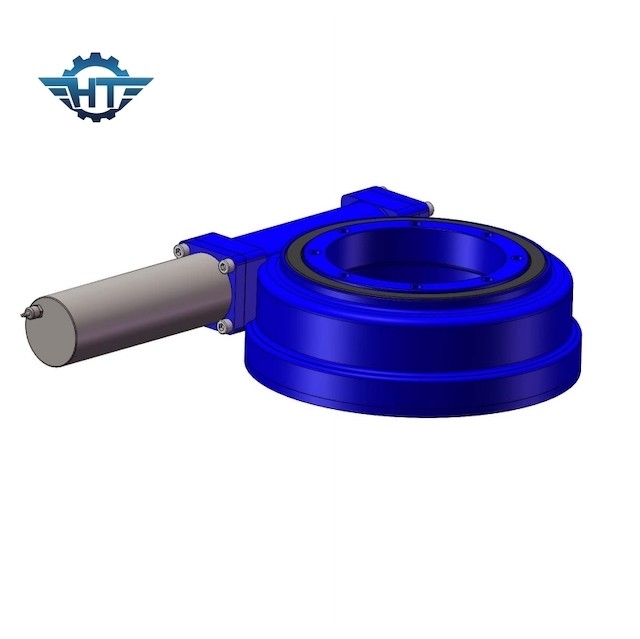

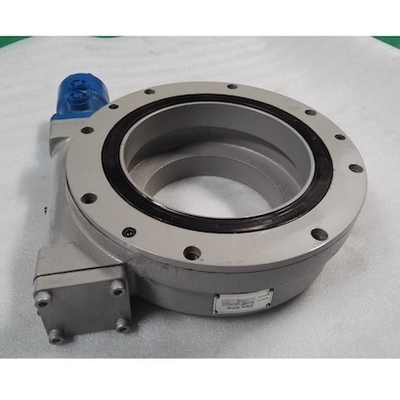

Enclosed Worm Gear Slewing Ring Drive, 21 Inches Bigh Size For Automation Robotics
Enclosed Worm Gear Slewing Ring Drive Description
The enclosed womr gear slewing ring drive can get a large transmission ratio, more compact than staggered axle oblique gear mechanism. With two wheel meshing tooth surface for line contact, its bearing capacity is much higher than the staggered axle oblique gear mechanism. Worm drive is equivalent to spiral transmission, it is multi-tooth meshing transmission, so the transmission is smooth, low noise. And it is self-locking, when the guide angle of the worm is less than the equivalent friction angle between the meshing teeth, the mechanism has feature of self-locking; it can realize the reverse self-locking, that is to say, only the worm to drive the worm wheel. With this feature, the worm mechanism used in heavy machinery can play a safety protection role.
SE21 Technical Parameters
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Hangtuo
Static Axial rating: 1600 KN
Static radial rating: 640 KN
Dynamic axial rating: 385 KN
Dynamic radial rating: 335 KN
Condition: New
Output torque: 16 kNm
Gear Ratio: 125:1
Tilting moment torque: 205 KN.m
Holding torque:105 KN.m
Motor: 125CC,160CC,200CC hydraulic motor
After-sales Service Provided: Engineers available to service machinery overseas
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Applications
Hangtuo slewing drives and slewing bearing/ring can be used for construction equipment and automation robotics system, such as truck mounted cranes, offshore carnes, excavator.
