Product Details:
|
| Model: | 14 Inches | Gear Ratio: | 85:1 |
|---|---|---|---|
| Applications: | Hydraulic Construction Machinery | Place Of Origin: | Changzhou, China |
| Driver: | Hydraulic Motor, Servo Motor | Installation: | Horizontal, Vertical |
| Color: | As Requested | Backlash: | 0.15° |
| Highlight: | Harden Steel Hydraulic Slewing Drive,Hydraulic Slewing Drive 14 Inches,14 Inches slew drive for solar tracker |
||
Harden Steel IP66 Hydraulic Slewing Reducer For Hydraulic Construction Machinery
Hydraulic Slewing Reducer Description

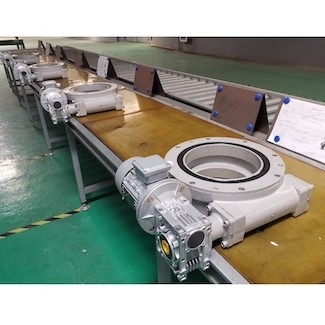

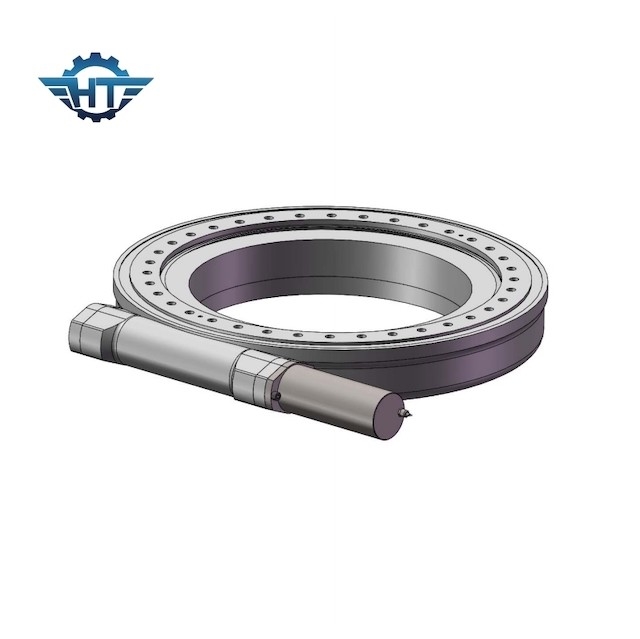

Our slewing drive SE14 is powered with hourglass worm technology for maximum gear torque and the smoothest rotation. Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities. The standard slew drives are fitted with an open housing and single self-locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Features
Low-speed heavy-duty slewing drive performance characteristics:
Small space ratio, easy installation and disassembly
Diversified output forms
Pre-adjust the gap value and install it directly on the machine
Output large torque under low speed conditions, can transmit comprehensive axial force, radial force and overturning moment
Helical gear and worm drive mode. Good economy, strong flexibility in axial size
Toroidal worm multi-tooth contact, strong bearing capacity
High performance density ratio
Self-locking performance or adding input brakes
IP65
Applications
The slewing drives can be with worm gear, spur gear, bevel gear. And also for the inside slewing ring, it can be single-row ball slewing ring, and also can be double-row ball slewing ring. The one with double-row can take much more load. It can be chosen depended on your application.
