Product Details:
|
| Place Of Origin: | Changzhou, China | Model: | VE5 |
|---|---|---|---|
| Gear Ratio: | 37:1 | Application: | Solar Trackers |
| Driver: | Planetary Gear Motor | Certificates: | ISO9001, CE |
| Installation: | Vertical, Horizontal | Maintenance: | Free |
| Color: | As Requested | Backlash: | 0.15 Degree |
| High Light: | Vertical Low Speed Motor Slewing Drive,Motor Slewing Drive ISO9001,ISO9001 electric slew drive |
||

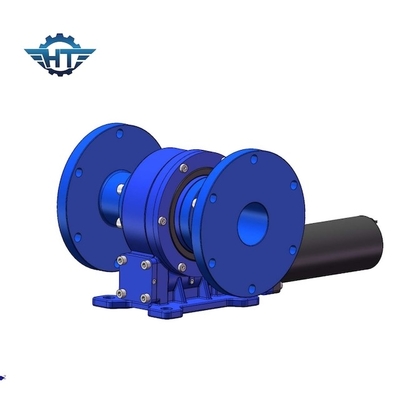

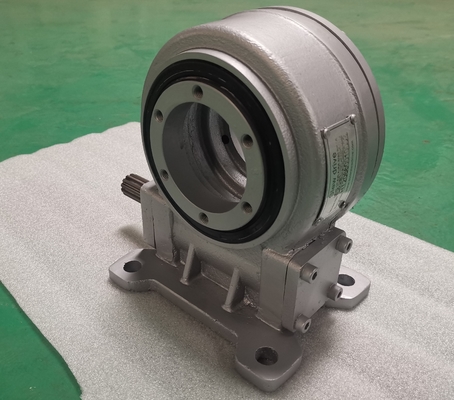

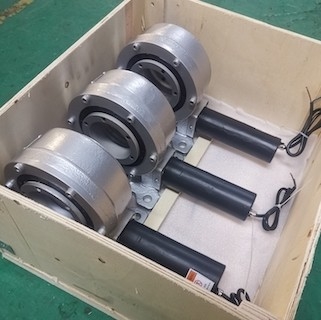

Vertical Low Speed Slewing Drive, IP66 5 Inches For Small Ground Mounting System
Low Speed Slewing Drive Description
The rotary reducer can withstand large axial force, radial force and tipping moment, and can drive the turntable or bracket to rotate horizontally and at pitch angles. The use of worm drive gear to achieve deceleration. Driven by the motor, the worm drives the outer ring of the slewing bearing to rotate, the outer ring outputs torque through the flange, and the inner ring of the slewing bearing is fixed in the base. It is used in the structural design of solar tracking brackets, driving the power generation system to track the solar power generation efficiency, and construction machinery driving two relatively rotating objects to rotate 360 degrees at will.
| Model | VE5 | Place of Origin | Changzhou,China |
| Brand | HT | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 600 N.m |
| Tilting Moment Torque | 5 K N.m | Holding Torque | 9.2 K N.m |
| Static Axial Rating | 16 KN | Static Radial Rating | 27 KN |
| Dynamic Axial Rating | 8 KN | Dynamic Radial Rating | 14 KN |
| Gear Ratio | 37:1 | Efficiency | 40% |
VE Model Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Solar trackering system
As a clean and renewable energy, solar energy has been used more and more, especially the tracking photovoltaic power generation technology is an emerging solar energy utilization technology following the conventional photovoltaic power generation technology.
The solar tracking system can keep the photovoltaic panels facing the sun as much as possible, increase the power generation of the solar photovoltaic modules, effectively reduce the investment cost of the photovoltaic power generation system, and improve the utilization rate of the solar photovoltaic modules. The transmission structure used to connect the power equipment and the photovoltaic panel in the traditional photovoltaic system has the disadvantages of complex structure and high cost.
