Product Details:
|
| Structure: | Worm And Wormwheel | Material: | 42CrMo, QT |
|---|---|---|---|
| Warranty: | 5 Years | Application: | Concentrated Solar Tower |
| Size: | Customized | Color: | Customized |
| Motor: | Stepper Motor | Mounting: | Dual Axis Mounting |
| Highlight: | worm gear slew drive,slewing ring gear |
||

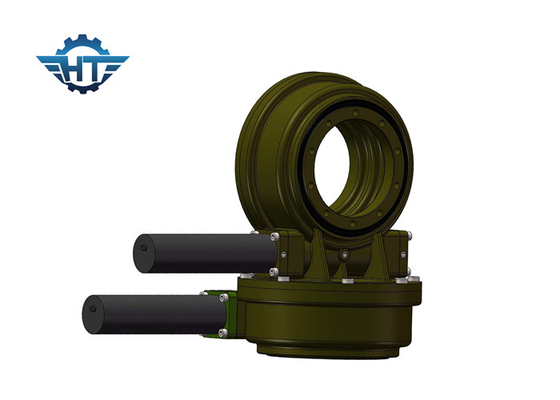

IP66 Worm Gear Dual Axis Slew Drive Gearbox For Concentrated Solar Tower
Worm Gear Dual Axis Slew Drive Description
Hangtuo‘s slewing drive is composed of the housing, slewing bearing, sealing, enveloping worm with some completed spare parts. We can also produce the Electronic motor and Hydraulic motor used for slewing drives, which can moves for clockwise direction and counter clockwise direction rotation.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Applications
The dual axis slew drive could be applied in concentrated solar power station-tower. The Tower CSP adopts the double tank structure, and the binary nitrate is used as the heat absorbing and heat storage medium. The solar energy collected by the large-scale heliostat field is used to store the molten salt, and then the molten salt is exchanged with the water according to the dispatching instruction of the power grid. The generated high temperature and high pressure steam drives the turbine generator set to generate continuous, stable and schedulable power output.
