Product Details:
|
| Feature: | Anti-corrosion | Model: | SDE7" |
|---|---|---|---|
| Gear Ratio: | 57:1 | Rated Output Torque: | 2000 Nm |
| Holding Torque: | 13500 Nm | Tilting Torque: | 13200 Nm |
| Efficiency: | 40% | Standard Color: | RAL 9006 |
| Highlight: | worm gear slewing ring,worm gear motor |
||

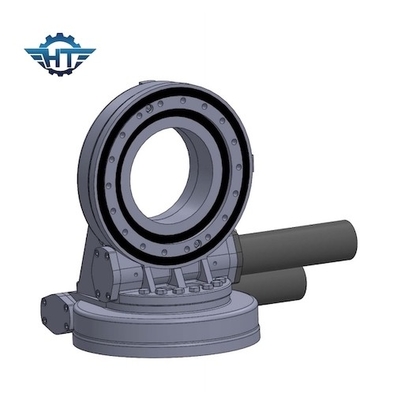

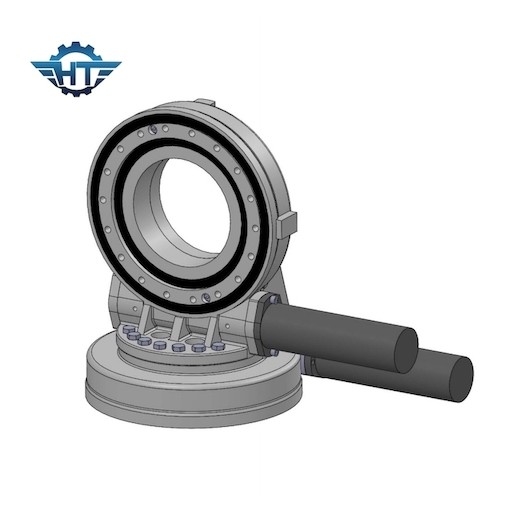

High Backlash Solar Tracker Slew Drive Concentrated Solar Power Station
Description
Welcome to Hangtuo's splendid series of solar tracker drive products! Hangtuo VE, SE series solar photovoltaic drive special slewing drive is designed for high-performance products developed and designed for solar tracking systems, suitable for photovoltaic single and double axis tracking systems, concentrating photovoltaic power generation systems, tower heliostats, dish stirling power generation, heating, trough concentrating power generation, heating and other solar energy Applications in the tracking system. It can also be customized according to your needs.
Sde7 Slewing Drive Performance Parameters
| Product Name | SDE7 Slewing drive with 43Nm 24Vdc gear motors |
| Output Torque | 980 N.m ; 723 ft.lbs |
| Max Output Torque | 1938 N.m; 1429 ft.lbs |
| Tilting Moment Torque | 7000 N.m; 5163 ft.lbs |
| Holding Torque | 13200 N.m ; 9736 ft.lbs |
| Static Axial Rating | 133.20 kN ; 29943 lb |
| Static Radial Rating | 53 kN ; 11977 lb |
| Dynamic Axial Rating | 31.90 kN ; 7171 lb |
| Dynamic Radial Rating | 27.91 kN ; 6274 lb |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower |
| Application Feature | Solar Tracking System, Industrial Machiner |
Applicatons
Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
