Product Details:
|
| Model: | 14 Inches | Gear Ratio: | 102:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Horizontal Series |
| Application: | Wind Generators | OEM Service: | Available |
| Driver: | Hydraulic, Electric | IP Class: | IP66 |
| Highlight: | 17 Inches Enclosed Slewing Drive,Enclosed Slewing Drive IP66,Horizontal Mounted electric slew drive |
||

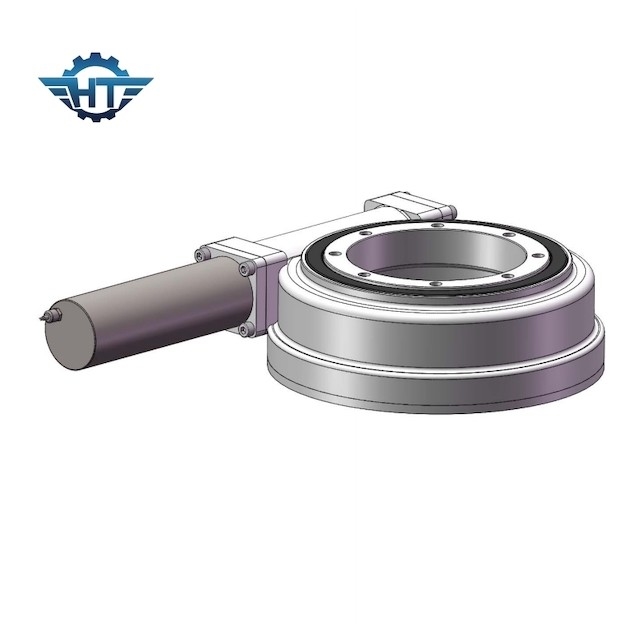

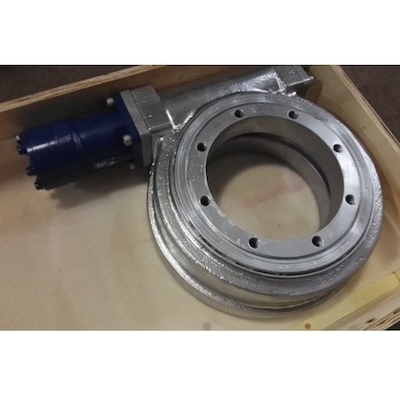

17 Inches Hydraulic Enclosed Slew Drive, IP66 Horizontal Mounted For Wind Generators
Hydraulic Enclosed Slew Drive Description
Slew drives with hydraulic motors are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, wind power systems etc. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously.
Features
1. A large transmission ratio can be obtained, which is more compact than the staggered shaft helical gear mechanism.
2. The meshing tooth surfaces of the two wheels are in line contact, and its bearing capacity is much higher than that of the staggered shaft helical gear mechanism.
3. The worm drive is equivalent to the screw drive, which is a multi-tooth meshing drive, so the drive is stable and the noise is small.
4. It is self-locking. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking, that is, only the worm can drive the worm, but not the worm. Such as the self-locking worm mechanism used in its heavy machinery, its reverse self-locking can play a role in safety protection.
5. The transmission efficiency is low and the wear is more serious. When the worm gear is engaged in the transmission, the relative sliding speed between the meshing gear teeth is large, so the friction loss is large and the efficiency is low. On the other hand, the relative sliding speed causes serious wear and heat generation on the tooth surface. In order to dissipate heat and reduce wear, more expensive materials with good anti-friction and anti-wear properties and good lubricating devices are often used, so the cost is high. .
6. The axial force of the worm is large
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Applications
1. Modular trailers
2. All types of cranes
3. Aerial working platform
4. Wind power systems
