Product Details:
|
| Model: | 7 Inches | Center Dia.: | 170mm |
|---|---|---|---|
| Efficiency: | 40% | Type: | Horizontal,Vertical |
| Application: | Truck Cranes | OEM Service: | Available |
| Driver: | Hydraulic Motor | IP Class: | IP66 |
| Highlight: | 7" Hydraulic Slew Drive,Slew Drive Motor Horizontal Mounted,7" slewing gearbox |
||

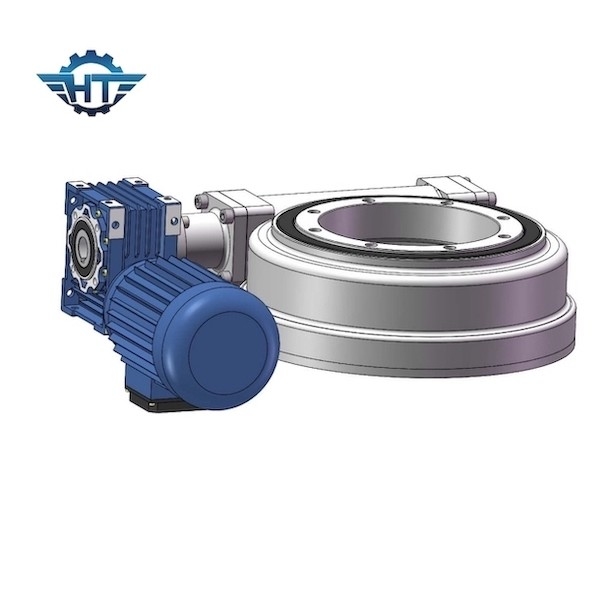

7 Inches Horizontal Mounted Slew Drive Gearbox With Hydraulic Motor For Truck Cranes
Horizontal Mounted Slew Drive Description
Changzhou Hangtuo’s slewing drives are of high quality.
They are enclosed housing slew drives with IP66 enclosure protection level. It is designed with an hourglass worm shaft with 5 teeth in contact between the slew ring and the worm shaft. This design offers a very solid back holding torque capacity for the heavy loads.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque(N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking |
Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Advantages
1. Higher IP grade, better protective level
2. The framework oil seal keeps shape and tension and guarantees the continuous and effective running of transmission part.
3. The oil seal is high heat-resisting and wear-resisting performance.
Applications
The rotary slewing drive device of hydraulic excavator is composed of a rotary motor and a rotary reducer. The rotary motor generally adopts an axial piston hydraulic motor. The speed is high and the torque is low. It needs to be decelerated and increased by the rotary reducer to drive the rotary platform turn.
