Product Details:
|
| Gear Ratio: | 85:1 | Type: | Enclosed |
|---|---|---|---|
| Application: | Small Digger Crawler Excavator | OEM Service: | Available |
| Driver: | Hydraulic Motor | IP Class: | IP66 |
| Color: | As Requested | Accuracy: | 0.1 Degree |
| Highlight: | 14" Hydraulic Slew Drive,Hydraulic Slew Drive IP66,14" Slewing Ring Drive |
||

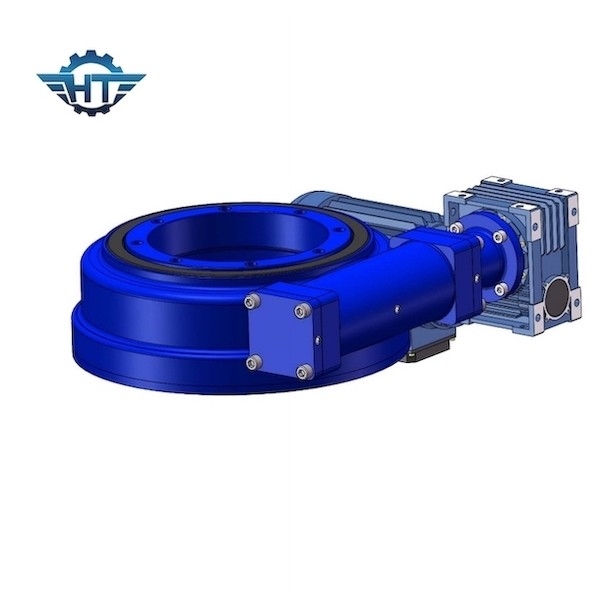

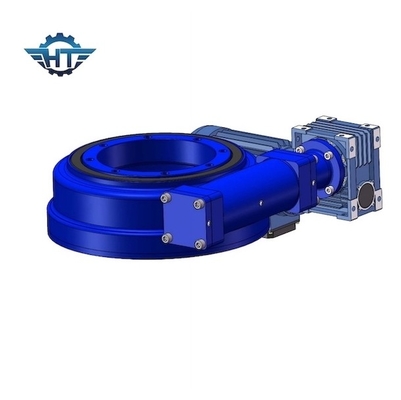

SE14 Slewing Ring Drive With Hydraulic Motors For Mini Small Digger Crawler Excavator
Slewing Ring Drive Description
Slew drive is a new kind of slew products. It is composed of worm, slewing ring, total enclosed housing, electric or hydraulic motor. The core parts is slewing ring, so it can bear axial loading, radial loading and titling moment at the same time. Compare with the traditional slew products, slew drive is easy to install and maintain, it can also save more space. The typical applications of our slew drive include agriculture machinery, construction machinery, conveyor systems, cranes, drilling rigs, mining, military, dredges, amusement park, solar generation system and other new energy field.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting |
Holding |
Axial |
Radial |
Ratio | Efficiency |
Precision |
IP |
Working Tep |
Self-locking |
Weight |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Applications
Hydraulic slewing drives can be widely used in heavy-duty flat-panel trucks, container cranes, Truck cranes, aerial vehicles, solar power generation systems, engineering machine, new energy and other heavy-load areas.
Other Information
- Payment : T/T, L/C
- Delivery : Sea Freight
- Origin : China
- Minimum Order : 1

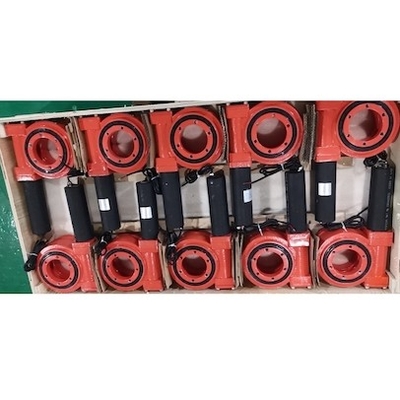

- Packaging : Anticorrosive wooden box, free of fumigation
- Samples : Charge
- Remarks : We can provides a wide range of services and products from design, research&development to manufacture and delivery. Pls ask us for detailed drawings of your interested products.
