Product Details:
|
| Model: | 9 Inches | Gear Ratio: | 61:1 |
|---|---|---|---|
| Efficiency: | 40% | Type: | Horizontal, Vertical |
| Application: | Turnable Industrial Machinery | Motor: | Hydraulic Motor |
| IP Class: | IP66 | Backlash: | 0.15 Degree |
| Highlight: | Compact Worm Drive Slew Ring,9" Worm Drive Slew Ring,Compact slew drive motor |
||

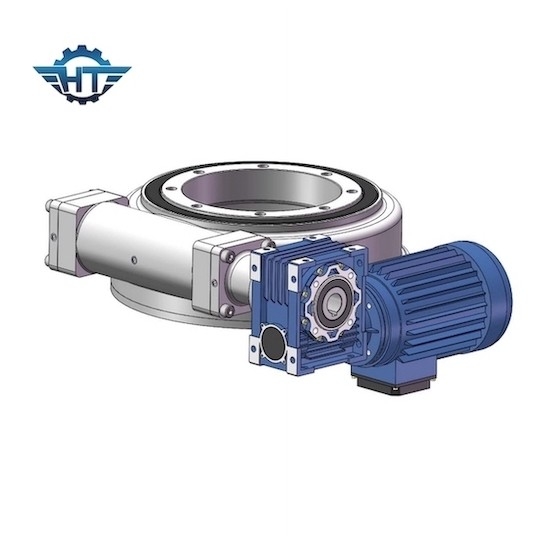

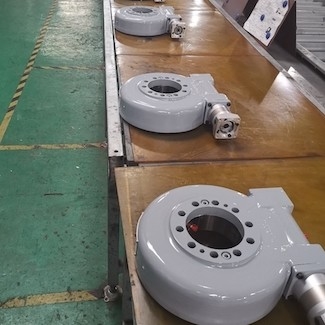

9 Inches Compact Slewing Drives, High Accuracy For Turnable Industrial Machinery
Compact Slewing Drives Description
The slewing reducer is an upgraded product of the slewing bearing, which usually consists of a worm, a turbine slewing bearing, a casing, and a power source. The shell is made of high-quality cast steel with very high strength. The worm gear and worm are all made of 42CrMo and desalinated by glow ions. The wear resistance strength is higher than the traditional domestic gas nitriding 50Mn material, which is similar to other domestic enveloping toroidal worms. Stronger than the hardness, the service life is longer.
SE Model Performance Parameters
| SE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) |
Holding Torque (kN.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency | Precision (degree) |
IP | Working Tep (℃) |
Self-locking | Weight (kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Advantages
High torque
High IP grade
Stable and reliable performance
Strong overturning moment
Adopt enveloping worm drive
Multi tooth contact, high load capacity
Self-locking function
Applications
This product can be used for flatbed transport vehicles, log cranes, single-column cranes, beam lifters, truck-mounted cranes, aerial work vehicles, solar energy for solar inspections, automation equipment and other mechanical equipment; in the solar photovoltaic power generation industry, rotary drives are generally equipped with DC planetary geared motors or AC geared motors are mainly used; in construction machinery, hydraulic motors are mainly used as power drive systems.
