Product Details:
|
| Material: | 50Mn, 42CrMo | Model: | SE14" |
|---|---|---|---|
| Gear Ratio: | 85:1 | Rated Output Torque: | 6550 Nm |
| Holding Torque: | 68000 Nm | Tilting Torque: | 54200 Nm |
| Axial Load: | 680 KN | Radial Load: | 230 KN |
| Highlight: | high load hydraulic slew drive,se14 hydraulic slew drive,hydraulic dual axis slew drive |
||

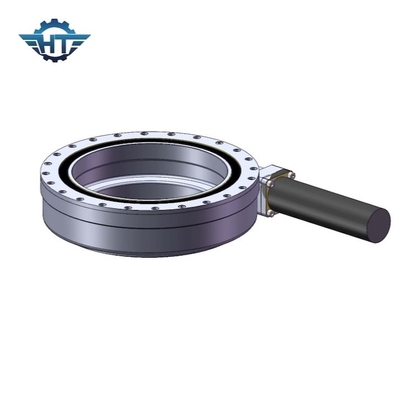

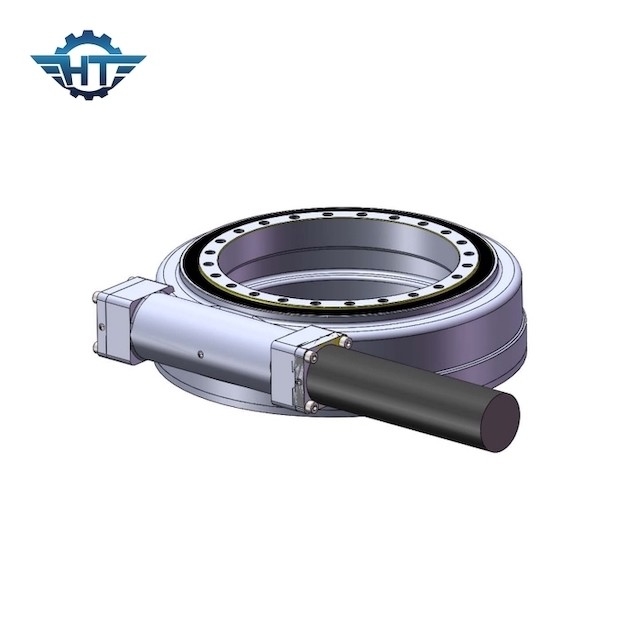

High Load Hydraulic Slew Drive For Self Propelled Modular Transporter
Hydraulic Slew Drive Description
Self-propelled hydraulic flatbed application
The SPMT is short for Self-propelled modular transporter and is known as the self-propelled module transporter, also known as the self-propelled hydraulic flatbed. Mainly used in heavy, large, high, special structure transport, its advantages are mainly flexible, easy loading and unloading, according to the volume and weight of the carrier, series parallel free combination, the maximum transport record of more than 15,000 tons. SPMT is widely used in equipment manufacturing, petroleum, chemical, offshore oil, bridge construction and other fields.
"Cross-car" for short. A special machinery used in container terminals or on a yard. It can be used for container horizontal handling, as well as as yard yard code, and as a variety of vehicles for replacement, is a multi-purpose machinery. When transporting horizontally, the speed is generally 23 km/h; Up to 32 km. It is characterized by good mobility and small swing radius of the vehicle; There are single, double, three- and four-tier cross-carriages with heap capacity. The illustration shows that single-layer cross-transport vehicles are mainly used for horizontal handling, can not be stacked containers, but can be replaced on the chassis car or railway vehicles, its stability is better, the speed can be improved.
Performance Parameters of SE series
| SE Model Performance Parameters | ||||||||||||
| Model |
Rated Output Torque (N.m) |
Tilting Torque (N.m) |
Holding Torque (N.m) |
Axial Load (kN) |
Radial Load (kN) |
Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep. (℃) |
Self- locking |
Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Features
1. Tooth type: Helical tooth
2. Bearing load: light load
3. Drive type: Motor drive
4. Module: 5/3.75
5. Number of worm shafts: 1
6. Gear Ratio: 85: 1
7. Efficiency: 40%
8. Self-locking gears: YES
9 Weight: 63 kg
