Product Details:
|
| Gear Ratio: | 37:1 | Type: | Enclosed |
|---|---|---|---|
| Application: | Dual Axis Solar Trackers | Axis: | Dual Axis |
| IP Grade: | IP66 | Color: | As Requested |
| Effciency: | 40% | Backlash: | 0.15° |
| Highlight: | Electric Dual Axis Slew Drive,Solar Trackers Dual Axis Slew Drive,Enclosed Dual Axis Slew Drive |
||

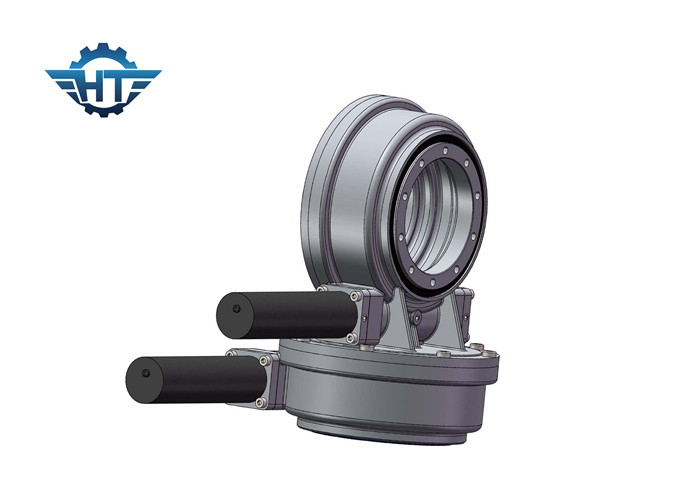

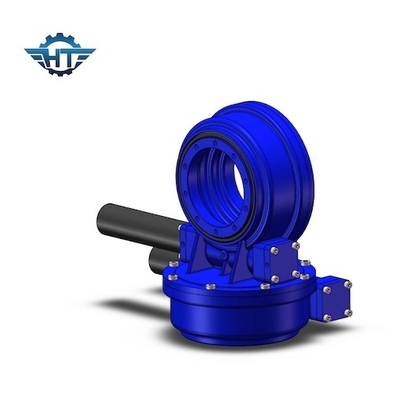

Enclosed Electric Slew Drive 0.15° Backlash For Dual Axis Solar Trackers
Electric Slew Drive Descriptions
Our slewing drives are manufactured under high-quality control systems and a team of experienced specialists. They are designed and manufactured by innovative fully automatic and semi-automatic production equipment, experienced and qualified engineers. Slewing drives are suitable for applications that require continuous or cyclic motion and are able to handle combined loads: CPV, PV, CSP, satellite dishes, etc. Our products have standard connection sizes for easy and simple connection to electric, hydraulic motors or systems.
Electric Slew Drive Advantages
1. 360 degrees tracking
2. Connection different motors based on customers' needs
3. High accuracy
4. Easy maintenance
5. Self-locking
6. Easy and fluent method of starting and stopping
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Electric Slew Drive Features
Gear ratio
The rotation of the horizontal worm turns a gear about an axis perpendicular to the screw axis. This combination reduces the speed of the driven member and also multiplies its torque; increasing it proportionally as the speed decreases.The speed ratio of shafts depends upon the relation of the number of threads on the worm to the number of teeth in the worm wheel or gear.
Hourglass worm
Our slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gear. This increased tooth engagement results in greater strength, efficiency and durability.
Function
Slewing drives function with standard worm technology, in which the worm on the horizontal shaft acts as the driver for the gear, in general, the shaft is driven by electric gear motor.
