Product Details:
|
| Model: | Dual Axis 12 Inches | Gear Ratio: | 78:1 |
|---|---|---|---|
| Efficiency: | 40% | IP Class: | IP66 |
| Application: | PV Tracking System | OEM Service: | Available |
| Driver: | 24VDC Motor | Backlash: | 0.15° |
| Highlight: | High Torque Slew Drive,24VDC Dual Axis Slew Drive,Self Locking Dual Axis Slew Drive |
||

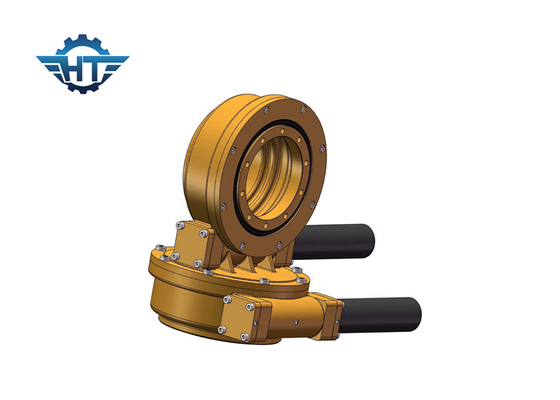

24VDC High Torque Slew Drive Self Locking For PV Tracking System
Company Products
Welcome to Hangtuo's splendid series of solar tracker drive products! Hangtuo VE, SE series solar photovoltaic drive special slewing drive is designed for high-performance products developed and designed for solar tracking systems, suitable for photovoltaic single and double axis tracking systems, concentrating photovoltaic power generation systems, tower heliostats, dish stirling power generation, heating, trough concentrating power generation, heating and other solar energy Applications in the tracking system. It can also be customized according to your needs.
High Torque Slew Drive Details
When coming to choose the suitable hydraulic slewing drive, we usually need to know the following:
1. The application
2. The hydraulic pressure system
3. The load and rotating speed required
4. In general, the SE slewing drive with hydraulic motor should be installed horizontally. If not by this way, pls let us know.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Advantages
1. Strong overturning moment
2. Adopt enveloping worm drive
3. Multi tooth contact, high load capacity
4. Self-locking function
Application Scope
Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
