Product Details:
|
| Material: | Casting Iron | Model: | SDE3" |
|---|---|---|---|
| Size: | 3-25 Inch | Bore Size: | 100-800mm |
| Gear Options: | External Gears | Warranty: | 5 Years |
| OEM: | Available | Rotating Type: | Dual Axis |
| Highlight: | Small Dual Axis Slew Gear Drive,25 inch Dual Axis Slew Drive,SDE 3" Dual Axis Slew Drive |
||

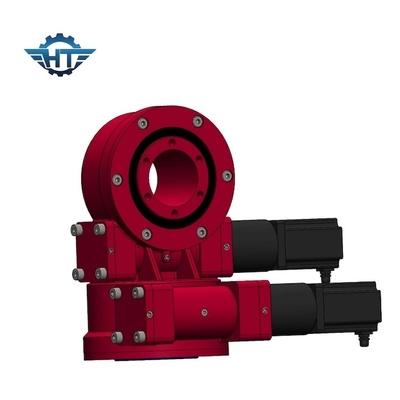

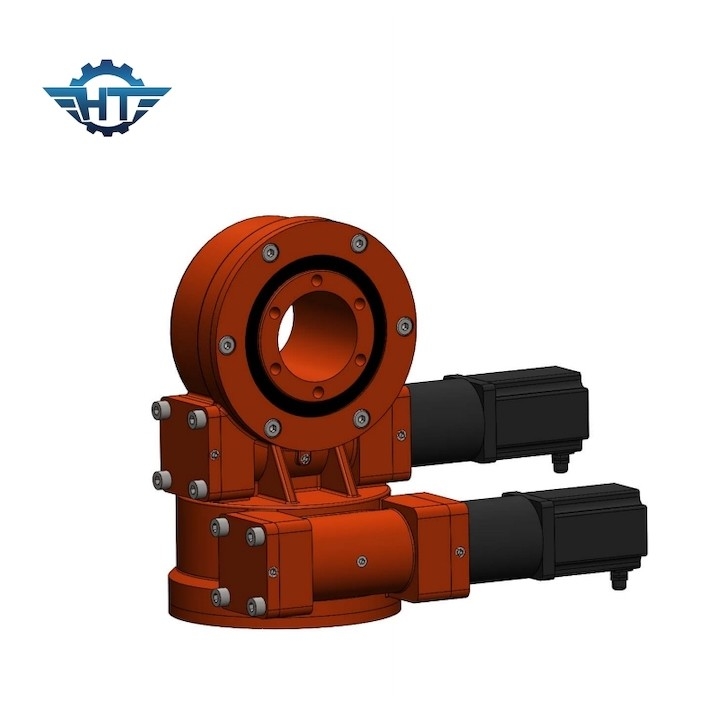

Small Dual Axis Slew Gear Enclosed Housing For Sun Tracking Panel Project
Slew Gear Description
Hangtuo’s slewing drives provide a large gear ratio in a single stage of gearing, optimized for weight versus performance. The wroms and gears are assembled into a low-profile, self-retaining, and ready-to-install housing, enabling the product to react to all axial and radial forces, and resulting tilting moments created in the most challenging applications. These highly-adaptable products also feature strong shock resistance, long-life performance, smooth rotation, bearing protection, and sealed drive options. All of the technical benefits, combined with industry-leading quality standards, make Hangtuo products the ideal candidates for performance-critical, heavy-duty applications.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) |
Tilting Torque (kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (degree) |
IP |
Working Tep (℃) |
Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
The Slew Drive Working Principle
The worm is driven by the motor, which drives the slewing drive to rotate and output the torque through the flange fixed in the housing. Slewing drive has reverse self-locking because of worm gear drive with reverse self-locking characteristics.
Key features
1. stable
2. high precision
3. excellent performance
