Product Details:
|
| Backlash: | ＜0.1° | Matched Motor: | Electrical Motor |
|---|---|---|---|
| Material: | Cast Iron | Model: | Vertical Slewing Drive |
| Motor Type: | Brushless Motor | Oem Service: | Available |
| Precision: | 0.1 Degree | Transmission Efficiency: | 40% |
| Highlight: | Small Worm Drive Gearbox,Horizontal Mounted Worm Drive Gearbox,Solar Tracking Worm Drive Gearbox |
||

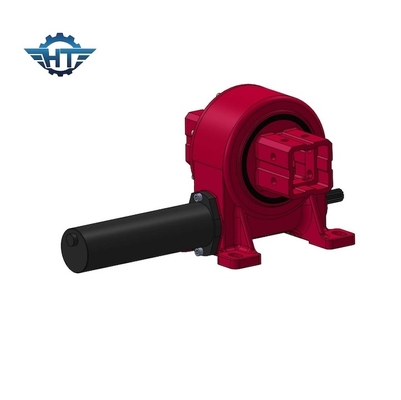

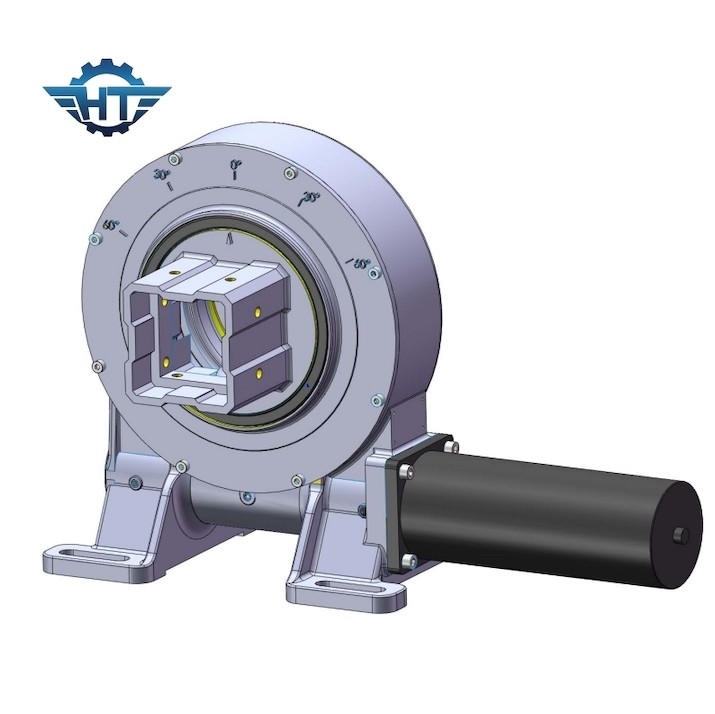

Horizontal Mounted Small Worm Drive Gearbox For Solar Tracking
Slewing Gearbox Description
A slewing gearbox, also known as a slewing drive or slew, is a mechanical device used to rotate or slew heavy loads in various applications. It is commonly employed in machinery such as cranes, excavators, wind turbines, and solar tracking systems.
The main purpose of a slewing gearbox is to provide controlled rotation and support for the load. It consists of several key components, including:
Housing: The outer structure that houses the internal components of the gearbox.
Slew Ring: A large, circular bearing that allows the gearbox to rotate smoothly. It provides support and stability to the load during rotation.
Gear Train: The gear train consists of a set of gears arranged in a specific configuration to achieve the desired rotational output. It typically includes a combination of spur gears, helical gears, or worm gears.
Motor: The motor provides the driving force to rotate the slewing gearbox. It can be an electric motor, hydraulic motor, or even a manual crank, depending on the specific application.
Output Shaft: The output shaft is connected to the gear train and extends from the gearbox housing. It transfers the rotational motion to the load, enabling it to rotate.
VE Model Slewing Gearbox Performance Parameters
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency |
Precision (Degree) |
IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Key Features
1. An unlimited rotating angle and range
2. Provide the most efficient transmission of high power and torque possible
3. Completely enclosed and sealed housing withstands harsh environments and increases safety
