Product Details:
|
| Shipping: | By Air, Train, Sea, Express | Ip Grade: | IP66 |
|---|---|---|---|
| Motor Voltage: | 24V DC | Protection Level: | IP66 |
| Self-Locking: | Yes | Tracking Precision: | 0.15 Degree |
| Work Time: | 24 Hours | Feature: | Anti-corrosion |
| Highlight: | Low Speed dual axis slew drive,Double Axis Slew Drive,slew drive For Solar Panel Trackers |
||
One of the key features of the Dual Axis Slew Drive is its IP66 rating, which means that it is highly resistant to dust and water, making it a great choice for use in harsh environments. Additionally, the product has a motor voltage of 24V DC, which ensures that it is efficient and reliable.
In addition to its impressive torque capabilities, the Dual Axis Slew Drive also features self-locking technology, which ensures that it stays securely in place when not in use. This is an important safety feature that helps to prevent accidents and ensures that the product is always operating at its best.
The Dual Axis Slew Drive is also equipped with a self-locking gear, which makes it easy to use and ensures that it stays securely in place at all times. This is particularly important for applications where precision and stability are critical.
In summary, the Dual Axis Slew Drive is a top-of-the-line product that is perfect for use in 2 axis turntable applications. It is highly reliable, efficient, and features a range of advanced technologies that make it easy to use and extremely safe. Whether you are working in a harsh environment or require precision and stability, the Dual Axis Slew Drive is the ideal solution for all your needs.
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |

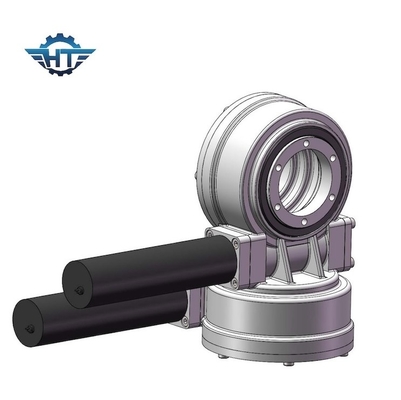

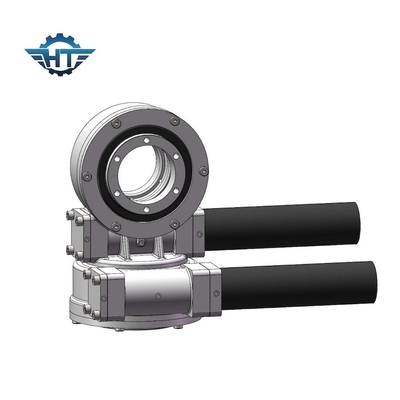

Introducing the Dual Axis Slew Drive, an electric slew drive that provides excellent control and precision for your 2 axis turntable needs. This product features:
The Dual Axis Slew Drive is designed to provide smooth and precise rotation for 2 axis turntable systems. It has a speed range that is low to high, making it suitable for both slow and fast rotation needs. Additionally, its tracking precision of 0.15 degree ensures that your system stays on track at all times, providing you with the accuracy that you need.
One of the best features of our Dual Axis Slew Drive is its self-locking gear. This feature ensures that your system is locked in place, preventing any unwanted rotation. This is particularly useful in situations where precision is required, and any movement could cause damage or errors.
The IP66 grade of our Dual Axis Slew Drive means that it is protected against dust and water, making it suitable for use in harsh environments. This protection ensures that the product lasts longer, reducing the need for regular maintenance or replacements.
Our Dual Axis Slew Drive is self-locking, which means that it does not require additional locking mechanisms to keep it in place. This feature saves time and effort, making it easier to set up and use.
Our Enclosed Slewing Drive is suitable for a wide range of applications. It can be used in solar tracking systems, wind turbines, heavy machinery, and other applications where precise rotation is required.
Overall, the HT Enclosed Dual Axis Slew Drive is a reliable and efficient product that is suitable for a variety of applications. Its self-locking gear and IP66 grade make it a durable and long-lasting solution for your rotation needs.
